KT M71

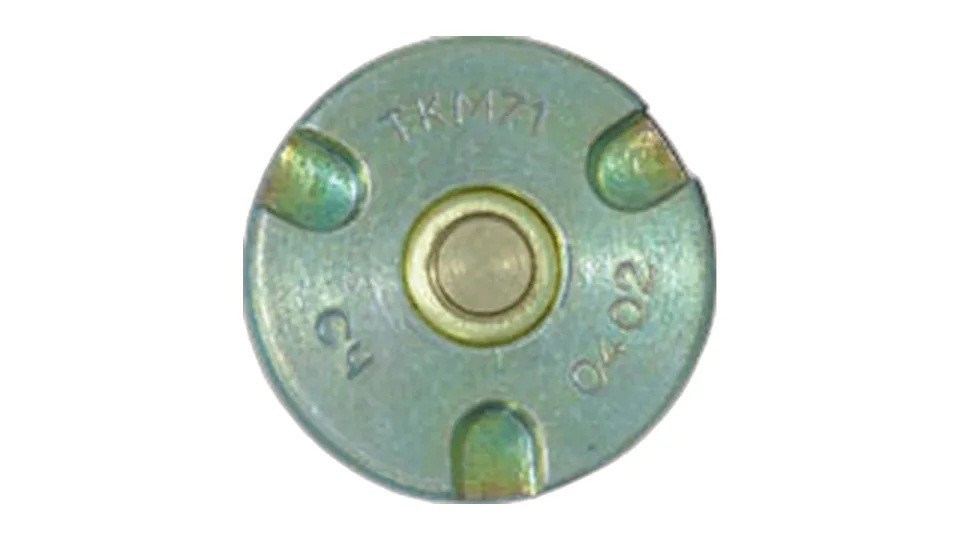

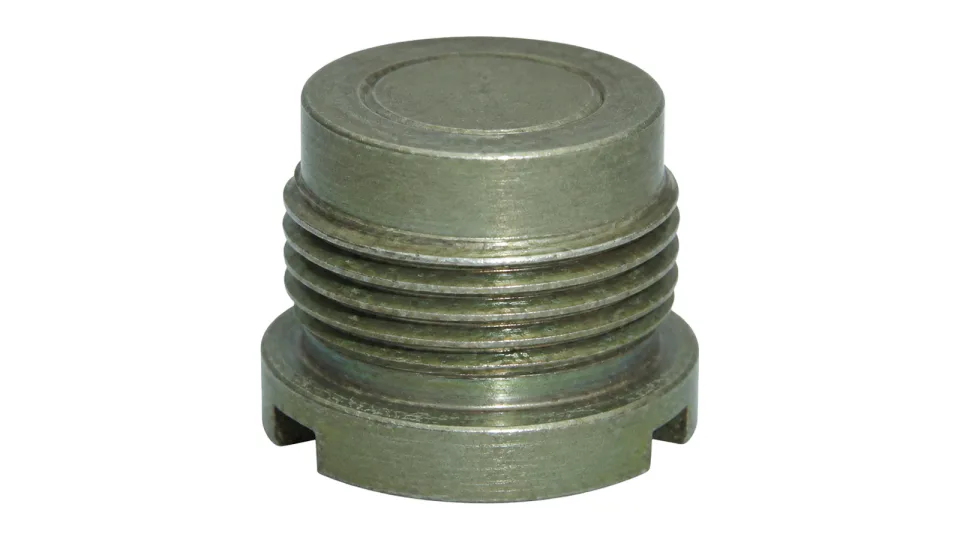

Percussion gun primer KT M71
Airtight percussion gun primer for initiating the propellant charge of 57 mm, 76 mm, 85 mm, 100 mm, 122 mm, 130 mm and 152 mm gun and howitzer ammunition, safe in all conditions of transport, storage and use.
Specification
| Primer type | percussion |
|---|---|
| Minimal conditions for action - impact energy (J) | 2.065 |
| Primer height (mm) | max 23.9 |
| Primer diameter (mm) | max Ø30 |
| Thread | SpW 27.178 x 14 pitches |
| Powder | black powder N°7 |
| Powder mass (g) | 2 |
| Primer mass (g) | 85 |
| Operating temperature (°C) | -30 ÷ +50 |
| Applications | 57 mm (antiaircraft gun S-60), 76 mm (mountain gun M48 B-1 and gun M42), 85 mm (antiaircraft gun M39/42 or M39/44), 100 mm (gun D-10 and antitank gun T-12), 122 mm (howitzer D-30 and M38), 130 mm (gun M46), 152 mm (gun-howitzer D-20 and M37) |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
