KT M82P2

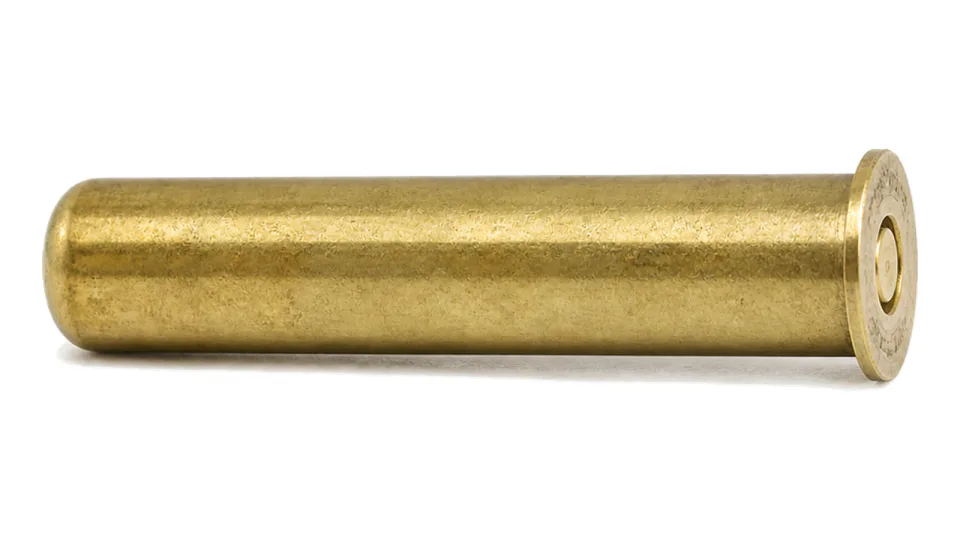

KT M82P2 percussion gun primer
A mechanical percussion gun primer intended for assembling 155 mm ammunition, firing at a minimum activation energy of 1.04 J.
Specification
| Primer type | percussion, mechanical |
|---|---|
| Minimum energy needed for activation (J) | 1.04 |
| Maximum energy needed for non-activation (J) | 0.29 |
| Maximum pressure of powder gasses (bar) | < 3500 |
| Primer height (mm) | max 49.8 |
| Primer diameter (mm) | Ø15.15 |
| Powder | black powder N°7 |
| Powder mass (g) | 1.4 |
| Primer mass (g) | 33 |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
