VVS-2020

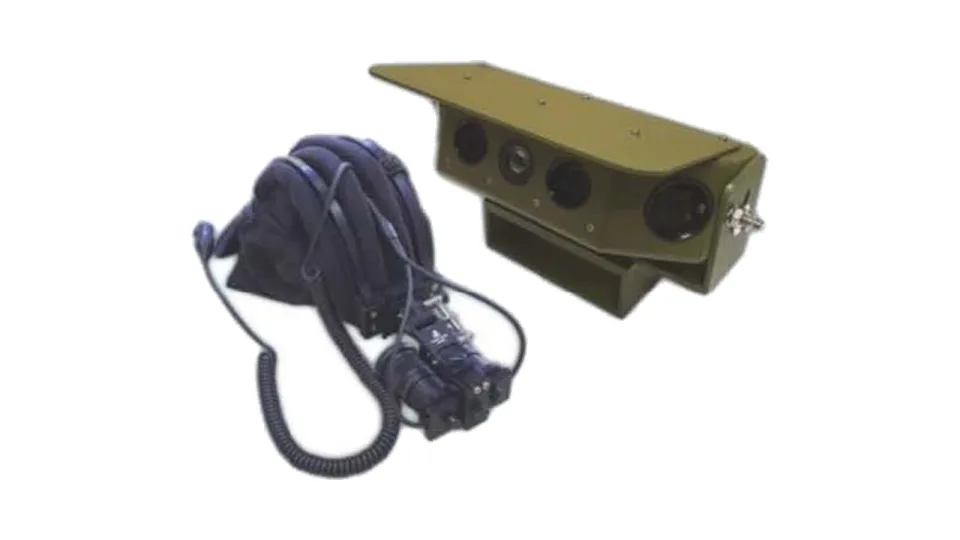

VVS-2020 vehicle vision system
Optoelectronic driver vision system with frontal dual low-light cameras, rear camera and thermal camera feeding a gyroscope-tracked twin ocular display.
Enlarge VVS-2020 vehicle vision system
Specification
| Cameras | Frontal dual low-light and rear camera, 1/1.18 in 16:9 CMOS, 2 MP |
|---|---|
| Camera resolution | 1920x1080 px, 800 TVL output |
| Minimum illumination | 0.01 lx |
| Camera field of view | 60 deg |
| Monitor panning | +/-60 deg (180 deg viewing angle) |
| Thermal detector | Uncooled VOx, 640x515 px, 17x17 um pitch |
| Thermal spectral range | 8-14 um |
| Thermal field of view | 60 deg |
| Ocular displays | 2, OLED, 800x600 px |
| Diopter adjustment range | +/-4 dptr |
| Eye relief | 20 mm |
| Voltage | 10-32 V |
| Operating temperature | -20 deg C to +50 deg C |
All data provided for information purposes; final specification is defined per contract.
