ZAOK NV GEN 3 FOM>2000
ZAOK NV clip-on night sight
Gen III clip-on night sight mounted in front of a day riflescope without re-zeroing, with upper Picatinny rail for an illuminator.

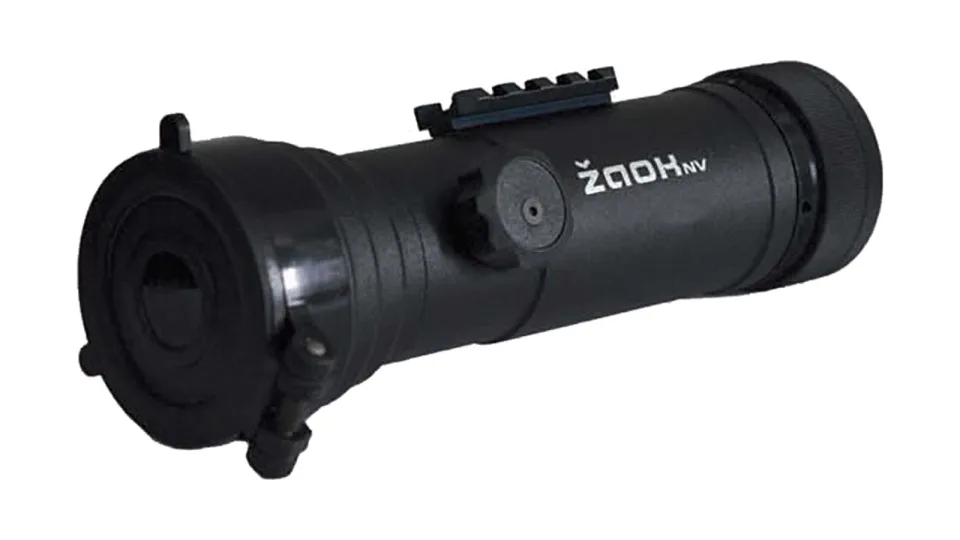

Enlarge ZAOK NV clip-on night sight
Specification
| Magnification | x1 |
|---|---|
| Field of view | 9 deg |
| Focus range | 10 m to infinity |
| Objective diameter | 52 mm |
| Exit pupil | 33 mm |
| Day riflescope magnification | Recommended 3-12x, optimal 3-9x |
| Image intensifier | HD 1521 (Gen III), FOM > 2000 |
| Photocathode sensitivity | min 600 uA/lm |
| Resolution | 43-64 lp/mm |
| Power source | CR123A |
| Battery life | min 50 hours |
| Operating temperature | -40 deg C to +50 deg C |
| Weight | 635 g |
| Dimensions | 190x82x62 mm |
All data provided for information purposes; final specification is defined per contract.
