UTE, M03 (without booster)

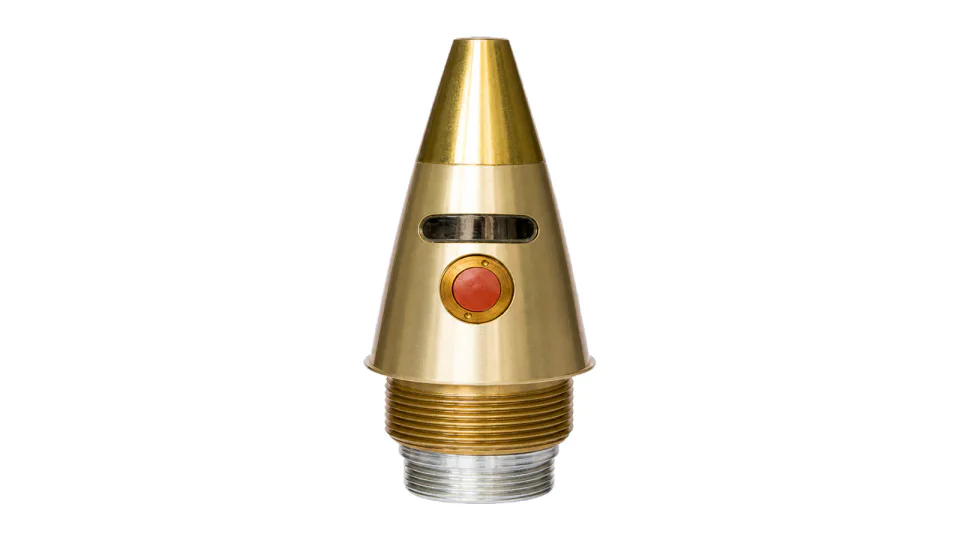

UTE M03 electronic time fuze without booster
Microprocessor electronic time fuze without booster for 105 to 155 mm illuminating, smoke HC, cargo and leaflet projectiles, 3 to 200 s setting.
Also written: 105 mm, 155 mm
Enlarge UTE M03 electronic time fuze without booster
Specification
| Fuze type | ET (electronic time), without booster |
|---|---|
| Ammunition compatibility | Special artillery ammunition 105 to 155 mm (illuminating, smoke HC, cassette, propagandistic) |
| Setting time range | 3 to 200 s in steps of 0.1 s |
| Setting accuracy | 0.1 s |
| Safety standard | MIL-STD-1316B |
| Fuze interchangeability | All electronic time fuzes with 2 in - 12 UNS-1A thread |
| Acceleration | 24000 to 250000 m/s2 |
| Rotation | 1800 to 25000 rpm |
| Muzzle velocity | max. 1100 m/s |
| Temperature range of use | -30 to +50 deg C |
| Storage period | min. 10 years |
| Packing | 8 fuzes in a metal box (305.6 x 154.8 x 190.5 mm, 8 kg gross), 80 boxes per pallet (1200 x 800 x 900 mm, 831 kg gross) |
| Transport classification | IMO Class 1.4D, UN No. 0410 |
All data provided for information purposes; final specification is defined per contract.
