vAF-M17 / vFI-M17

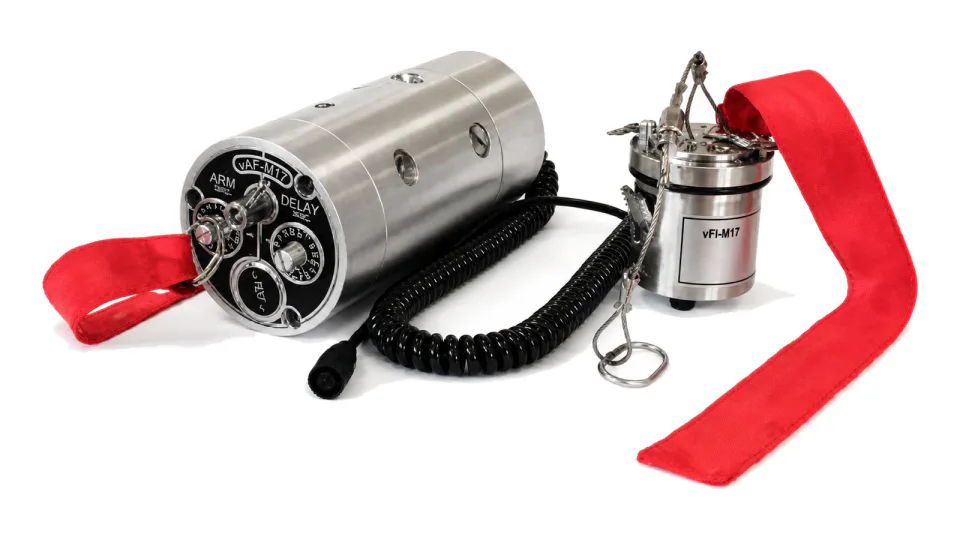

vAF-M17 aerial bomb fuze with vFI-M17 initiator
An inertial electro-mechanical aerial bomb fuze with a microcontroller and an interrupted explosive chain that keeps the detonator physically isolated until arming, paired with a top-mounted initiator, offering arming delays from 2 to 25 seconds and detonation delays from instantaneous to 1000 seconds.
Enlarge vAF-M17 aerial bomb fuze with vFI-M17 initiator
Specification
| Fuze type | Inertial electro-mechanical fuze with microcontroller and interrupted explosive chain |
|---|---|
| Bomb compatibility | MK-82, MK-84 and BLU-109 |
| Fuze-set configuration | One or two vAF-M17 bodies mounted in the bomb nose and/or tail, connected to a top-mounted vFI-M17 initiator |
| Minimum bombing altitude | 2000 m |
| Minimum flight speed | 200 km/h |
| Safety standard | MIL-STD-1316 |
| Environmental qualification | MIL-STD-331D and MIL-STD-810 |
| Safety | Activation only after arming and target impact |
| Functional and dimensional equivalents | M-904, M-905, FMU-152 and FMU-139 |
| Operation mode | ACTIVE: electrically initiated; PASSIVE: no arming and no detonation |
| Impact limit | Adjustable from 10g up to 200g; Duration of the impact >10ms |
| Arming delay time | 2, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25 seconds. |
| Detonation delay time | Instant, 0.01, 0.025, 0.05, 0.06, 0.1, 0.18, 0.25, 0.75, 10, 60, 600 and 1000 seconds |
| Accuracy of the arming time | ±5% |
| Accuracy of the detonation delay time | ±8% |
| Weight | Fuze: ~2 kg; Initiator: ~0.4 kg |
| Dimensions | Fuze: 165 mm, Ø70 mm; Initiator: 68 mm, Ø52 mm |
| Working conditions | T = -40 °C to +70 °C at 100% humidity |
| Storage conditions | T = -55 °C to +70 °C at 100% humidity |
All data provided for information purposes; final specification is defined per contract.
