SARAC 99

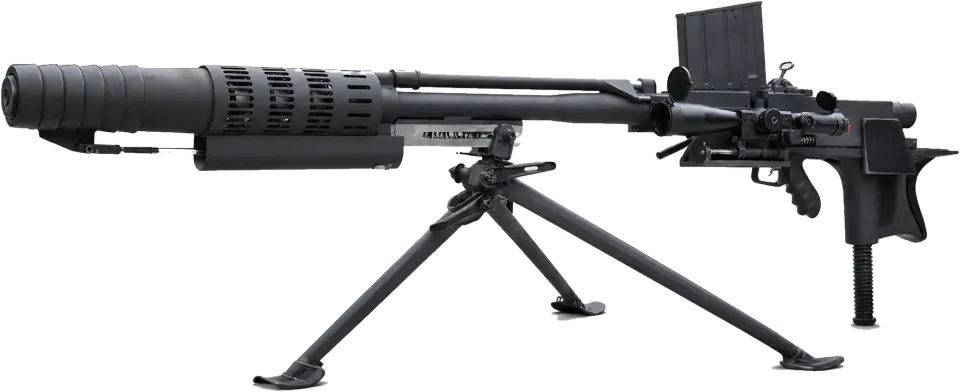

SARAC 99 Heavy Anti-Materiel Rifle
Shoulder-fired 20x110 mm anti-materiel rifle on an adjustable tripod, effective to 1600 m against ground and water-surface targets.
Also written: 20 mm, 20 mm Hispano, 20 mm x 110, 20 x 110, 20X110, 20x110, 20x110 mm Hispano

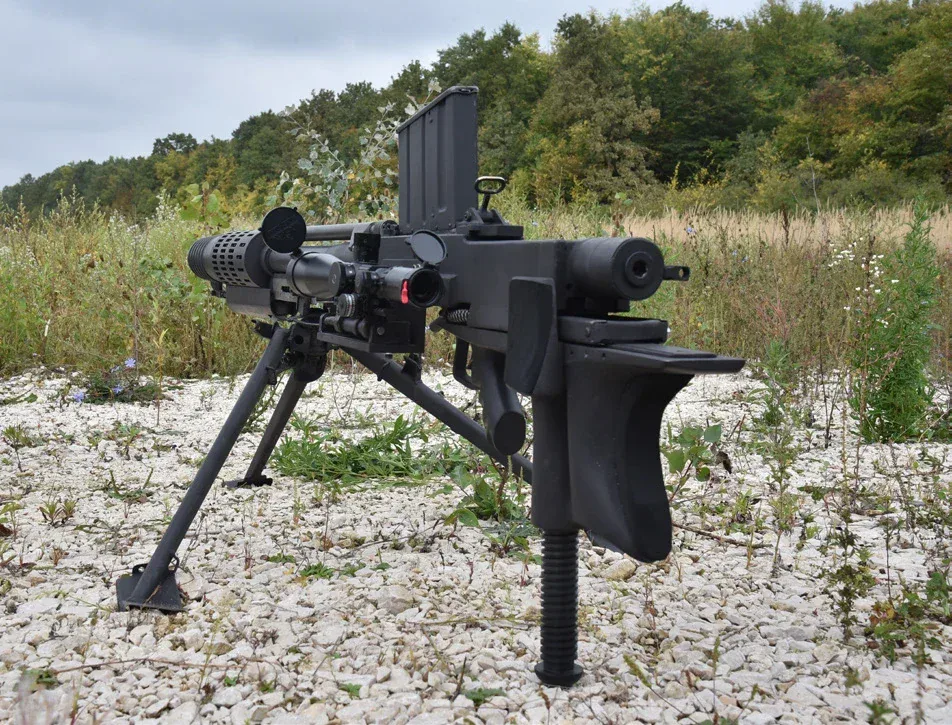

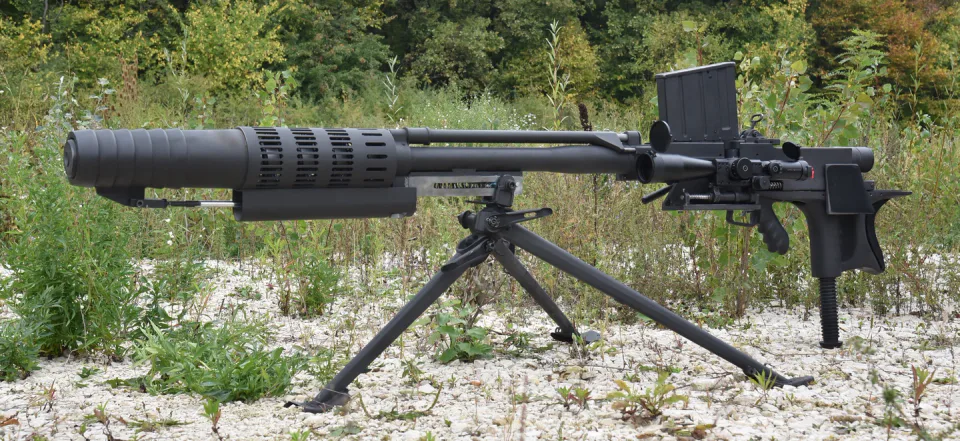

Show SARAC 99 Heavy Anti-Materiel Rifle, view 1 of 3Show SARAC 99 Heavy Anti-Materiel Rifle, field side profileShow SARAC 99 Heavy Anti-Materiel Rifle, rear three-quarter
Enlarge SARAC 99 Heavy Anti-Materiel RifleEnlarge SARAC 99 Heavy Anti-Materiel Rifle, field side profileEnlarge SARAC 99 Heavy Anti-Materiel Rifle, rear three-quarter
Specification
| Calibre | 20 mm |
|---|---|
| Ammunition used | 20x110 mm Hispano (HE, HEI, HE-T, HEI-T, AP-T, TP-T, Blank) |
| Muzzle velocity | 840 m/s |
| Twist rate, left to right | 381 mm |
| Maximal powder pressure | 3500 bar |
| Penetration of armour-piercing round | 25 mm steel plate at 200 m at 90 deg |
| Combat rate of fire with aiming | 3-5 rounds/min |
| Effective range | 1600 m |
| Field of action in elevation without moving the tripod | -3 deg to +10 deg |
| Field of action in traverse | 360 deg |
| Detachable magazine capacity | 5 or 7 rounds |
| Total length with muzzle brake and compensator | 1900 mm |
| Barrel length | 1150 mm |
| Weight of rifle without magazine and optical sight | < 50 kg |
| Weight of magazine loaded with 7 rounds | < 3.5 kg |
| Ammunition combat set | 3 magazines x 7 rounds = 21 rounds |
| Weight of rifle with one combat set | < 65 kg |
| Recommended optical sights | Kahles 624i or Shmidtbender PM-II; other optical, passive or thermal imaging sights may also be used |
| Crew | 3 (sniper, sniper assistant / spotter, and ammunition bearer) |
All data provided for information purposes; final specification is defined per contract.
