DLO-2020

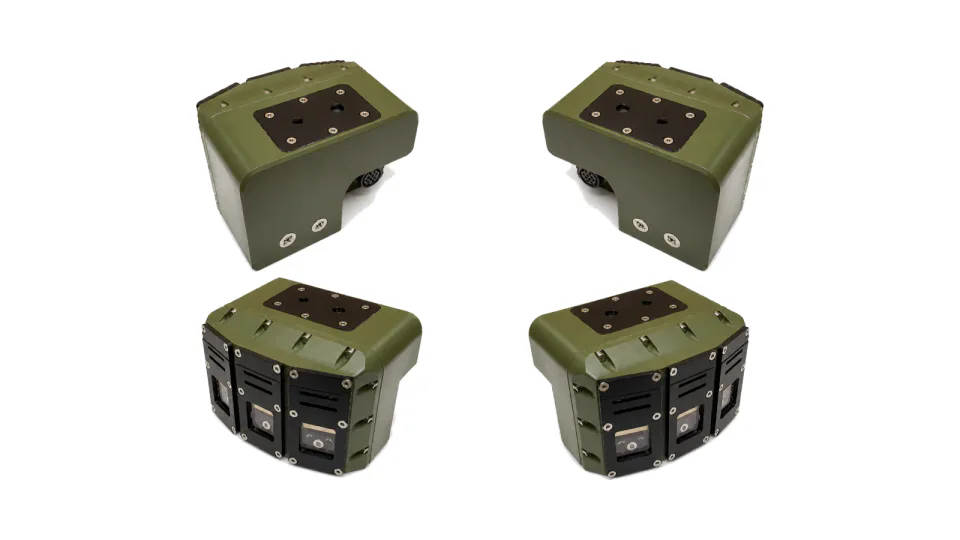

DLO-2020 laser irradiation detection module
Laser irradiation detection module for vehicles, four modules covering the upper hemisphere and reporting over CAN bus to a central control unit.
Specification
| Direct detector spectral range | 0.4 um to 1.65 um |
|---|---|
| Indirect detector spectral range | 0.4 um to 1.65 um |
| Detection sectors per module | 3 |
| Horizontal field of view per module | 120 deg |
| Vertical field of view (direct) | -50 deg to +60 deg |
| Vertical field of view (indirect) | -20 deg to -5 deg |
| Data interface | CAN bus 1 Mb/s, CAN FD control |
| Voltage | 18 VDC to 36 VDC |
| Current per module | <= 210 mA at 24 VDC |
| Operating temperature | -32 deg C to +50 deg C |
| Module dimensions | 127x93x87 mm |
| Module mass | 1.1 kg |
| System composition | Four detector heads and central control unit per vehicle |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
