AEG artillery electronic goniometer
Artillery observation set of sensor head, goniometer, power supply, tripod and rugged tablet, for target acquisition and fire mission data collection.

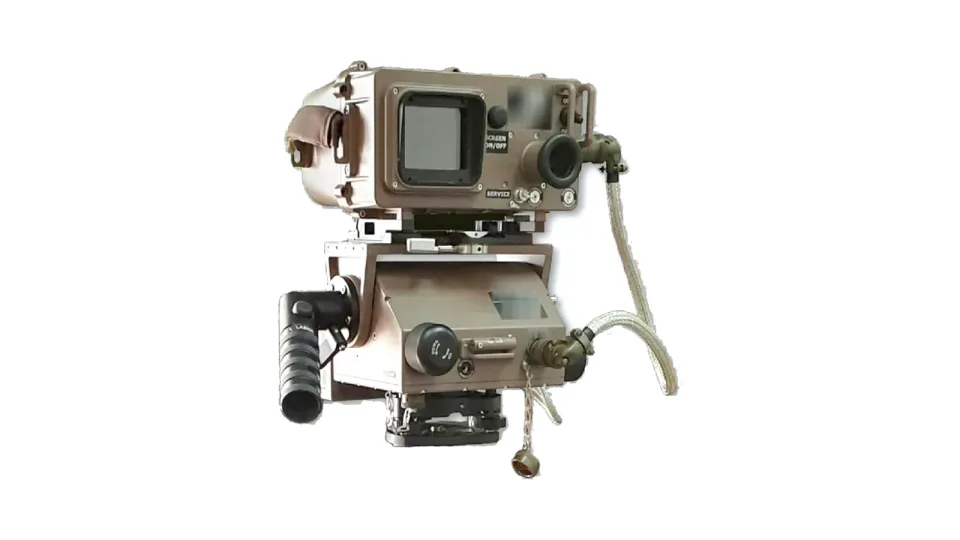

Show AEG artillery electronic goniometer, view 1 of 2Show AEG artillery electronic goniometer, sight head detail
Enlarge AEG artillery electronic goniometerEnlarge AEG artillery electronic goniometer, sight head detail
Specification
| Optical sight | 7x magnification, 7 deg field of view, +/-5 diopter adjustment |
|---|---|
| Laser wavelength | 1064 nm |
| Laser energy | 15 mJ |
| Laser beam divergence | 1.3 mrad |
| Distance measuring range | 180-20000 m |
| Distance measuring accuracy | +/-5 m (target 2.3x2.3 m, 30% reflectivity, visibility 20 km) |
| Measuring distance frequency | max 6 measurements/min |
| Digital magnetic compass | North accuracy 0.45 deg (8 mils); pitch and roll range +/-85 deg |
| Thermal camera | Uncooled LWIR 7.5-13.5 um, 640x512 pixels, 6.2 deg x 5 deg, 100 mm lens, 8x-64x digital zoom |
| Goniometer horizontal angles | 0-6400 mils, accuracy 1 mil |
| Goniometer vertical angles | +/-500 mils, accuracy 1 mil |
| Power supply | Li-ion 25.2 V 6.8 Ah; external 22-29 VDC |
| Mass | 21 kg (sensor head, goniometer, power supply, tripod) |
| Operating temperature | -20 deg C to +55 deg C |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
