M60

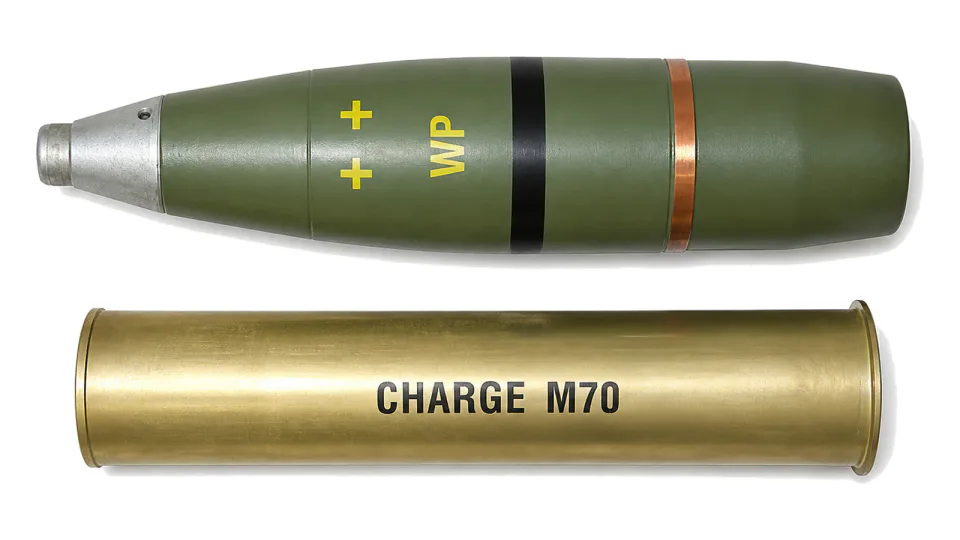

76 mm smoke shell M60
Fixed 76 mm white phosphorus smoke round for the 76 mm gun M48B1, ballistically matched to the HE round.
Also written: 76
Enlarge 76 mm smoke shell M60
Specification
| Projectile weight | 6.2 kg |
|---|---|
| Filling | 0.43 kg white phosphorus (WP) |
| Propelling charge weight | 0.32 kg |
| Cartridge case weight | 1.55 kg |
| Projectile length | max 347 mm |
| Cartridge case length | 385 mm |
| Muzzle velocity | 398 m/s |
| Maximum range | 8750 m |
| Fuze | UTI, M68 P1 |
| Fuze action | impact, superquick and delay |
| Weapon compatibility | 76 mm gun M48B1 |
| Packaging | 3 rounds in a wooden case |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
