M314 A4 (M03)

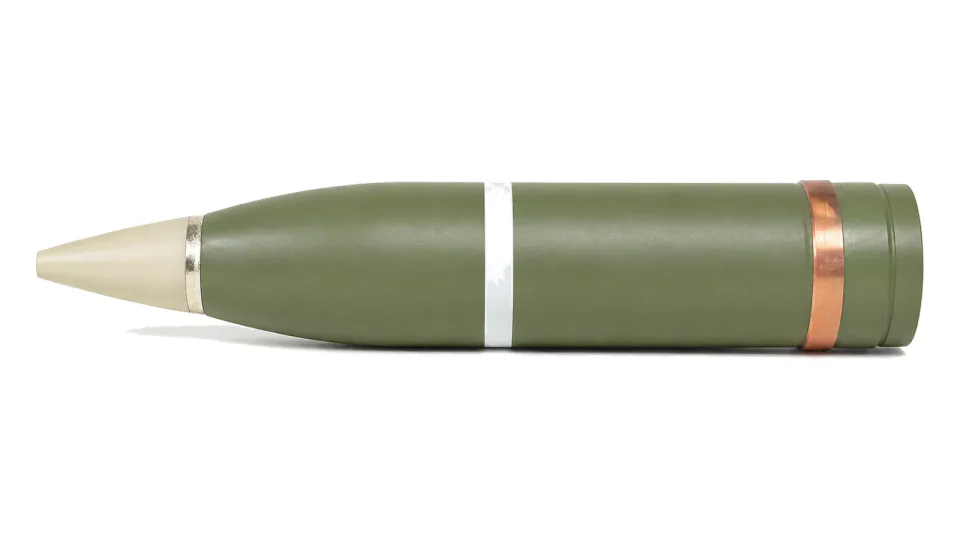

105 mm illuminating shell M314 A4
Semi-fixed 105 mm parachute illuminating round with electronic time fuze, min 600000 cd for min 30 s.
Also written: 105
Enlarge 105 mm illuminating shell M314 A4
Specification
| Projectile weight | 15.85 kg |
|---|---|
| Contents weight | 4.2 kg |
| Propelling charge weight | 1.3 kg |
| Propelling charge type | M2 |
| Cartridge case weight | 2.74 kg |
| Primer | M28A2 brass |
| Projectile length with fuze | 487.4 mm |
| Cartridge case length | 372 mm |
| Muzzle velocity | 461 m/s |
| Maximum range | 9200 m |
| Light intensity | min. 600000 cd |
| Burning time | min. 30 s |
| Fuze | UTE, M03, electronic time fuze |
| Weapon compatibility | 105 mm howitzers M56 and M18/61 |
All data provided for information purposes; final specification is defined per contract.
