TVN-2MS

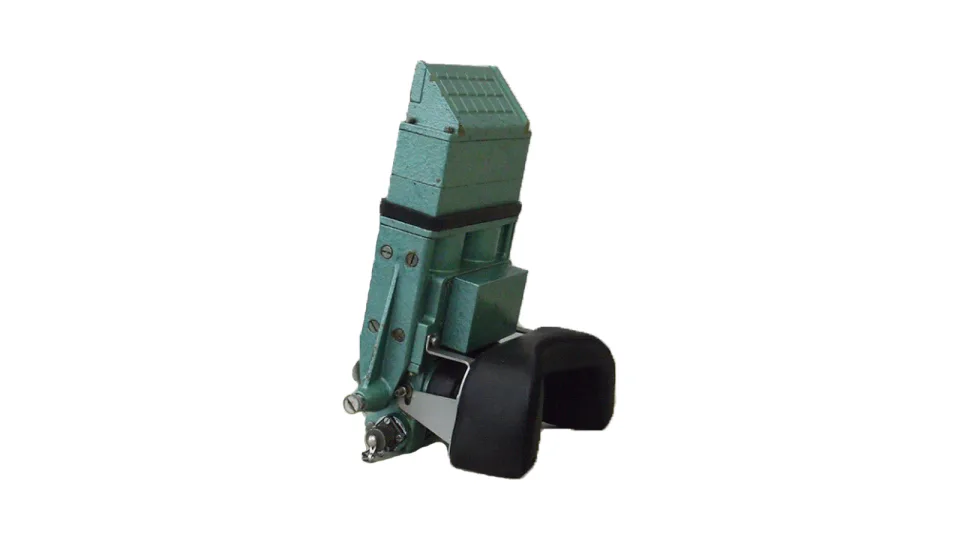

TVN-2MS passive driver periscope
Passive optoelectronic driver periscope for night and low visibility driving, dimensionally interchangeable with TVN-2.
Enlarge TVN-2MS passive driver periscope
Specification
| Magnification | x8.5 |
|---|---|
| Field of view | >= 27 deg |
| Resolution | 0.96 mrad |
| Distance of detecting targets | >= 120 m |
| Eyepiece focus | -0.5 dptr to -1 dptr |
| Operating temperature | -30 deg C to +50 deg C |
| Overpressure | 0.2 kPa, 10 min |
| Weight | 4.2 kg |
| Length/Width/Height | 300x145x160 mm |
| Image intensifier | HD 1400 M |
| Set | Two image intensifier tubes, spare parts and accessories |
All data provided for information purposes; final specification is defined per contract.
