RSFB
RSFB shock flash hand grenade
Hand-thrown grenade producing a single strong report with intense light from a fragment-free carton loading.

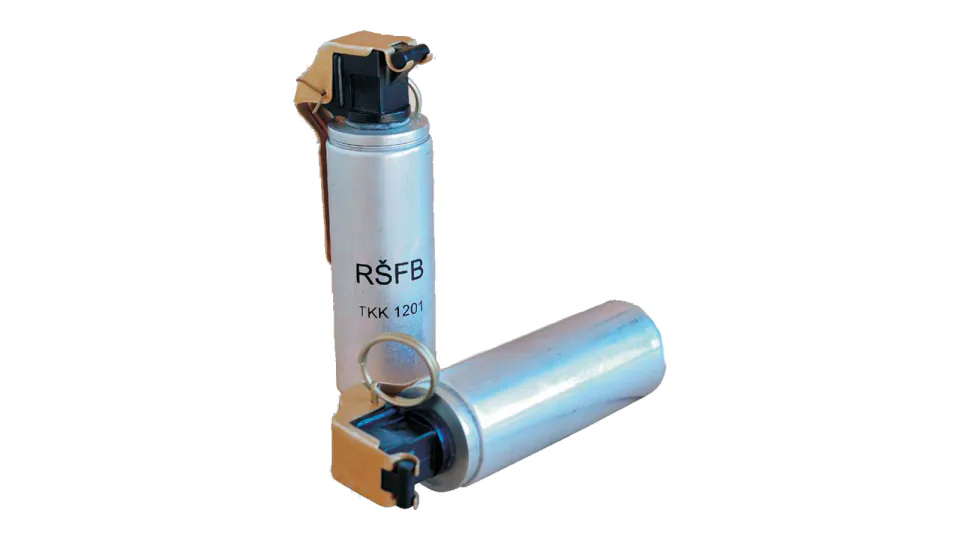

Enlarge RSFB shock flash hand grenade
Specification
| Diameter | 36.7 mm |
|---|---|
| Height | 127 +/- 2 mm |
| Mass of the grenade | 120 +/- 5 g |
| Mass of pyrotechnic mixture | 11 g |
| Igniter | Mechanical |
| Delay time | 3.0 +/- 0.5 s |
| Sound effect | min. 120 dB at distance of 1 m |
| Activation | By hand |
| Body | Cylindrical aluminium, one carton shock/flash loading |
| Shelf life | 5 years |
| Packaging | 32 units per waterproof carton box 90 x 420 x 265 mm, 5 kg gross |
| Classification | UN 0431, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract.
