RBG 38 mm/6
RBG Six-Shot 38 mm Grenade Launcher
Six-shot revolver-type 38 mm smooth-bore grenade launcher for police duties, firing non-lethal 37/38 mm ammunition to 150 m.
Also written: 1.5 inch, 37/38 mm, 38

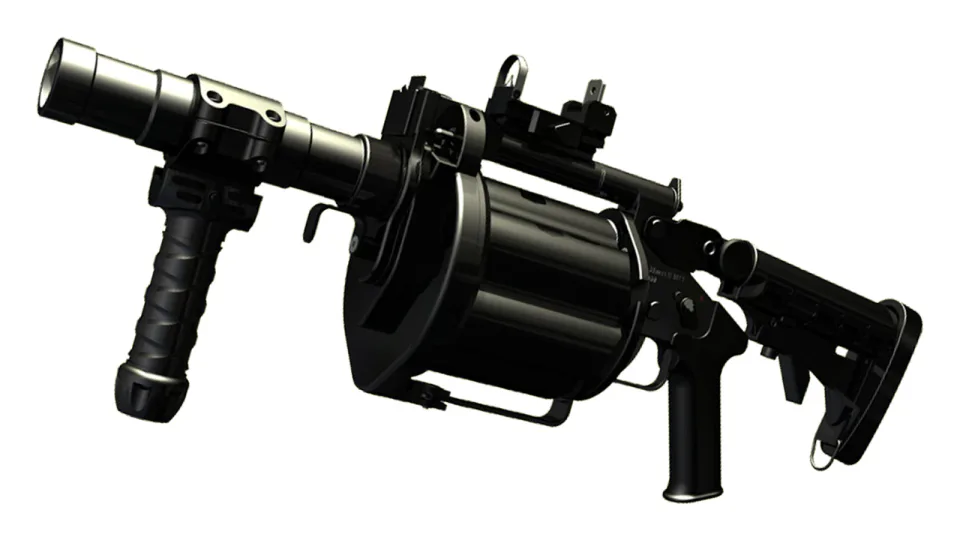

Enlarge RBG Six-Shot 38 mm Grenade Launcher
Specification
| Calibre | 38 mm |
|---|---|
| Barrel | Smooth |
| Barrel length | 250 mm |
| Drum capacity | 6 |
| Drum length | 140 mm |
| Type of fire | Single |
| Trigger mechanism | Double action |
| Weight without ammunition | <= 4 kg |
| Length with stock folded | 600 mm |
| Length with butt unfolded | 800 mm |
| Height | 250 mm |
| Width | 100 mm |
| Rate of fire | >= 12 grenades/min |
| Maximum range | 150 m |
All data provided for information purposes; final specification is defined per contract.
