PD51 RBG 40 mm/6
RBG Six-Shot 40 mm Grenade Launcher
Six-shot 40 mm grenade launcher with 300 mm progressive-twist barrel and reflex sight, firing medium and high velocity grenades.
Also written: 40, 40 mm NATO standard

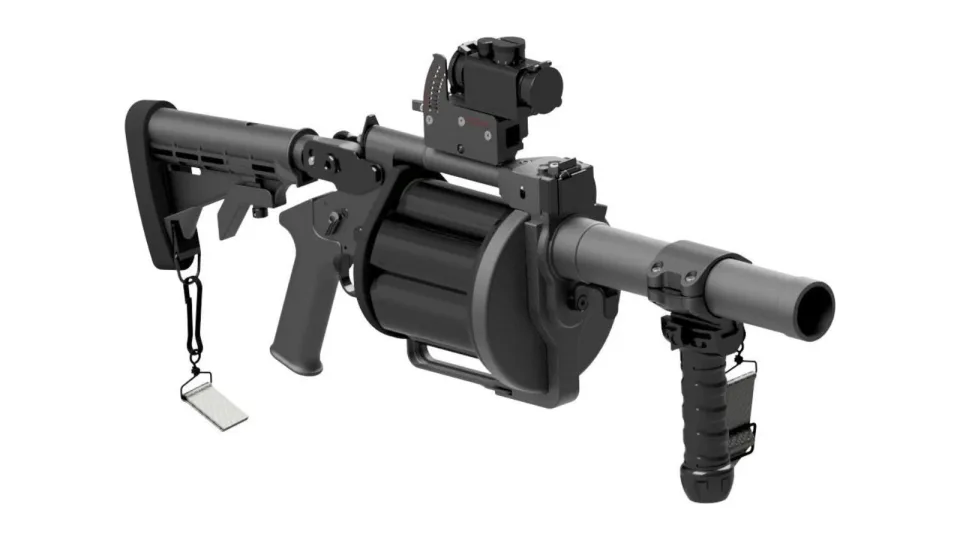

Enlarge RBG Six-Shot 40 mm Grenade Launcher
Specification
| Calibre | 40 mm |
|---|---|
| Number of grooves in the barrel | 6 |
| Groove twist | Progressive, 1 rev./1200 mm, right hand |
| Barrel length | 300 mm |
| Initial velocity, medium velocity grenade | 78 +/- 5 m/s |
| Initial velocity, high velocity grenade | 120 +/- 5 m/s |
| Drum capacity | 6 grenades |
| Drum length | 140 mm |
| Trigger mechanism | Double action |
| Weight when empty | 5.9 kg |
| Length with butt stock folded / unfolded | 750 mm / 850 mm |
| Height without / with reflex sight | 254 mm / 341 mm |
| Rate of fire | >= 12 grenades/min |
| Maximum range, medium / high velocity grenade | 375 +/- 30 m / 775 +/- 30 m |
All data provided for information purposes; final specification is defined per contract.
