PD UTU-M93N
PD UTU-M93N mortar fuze

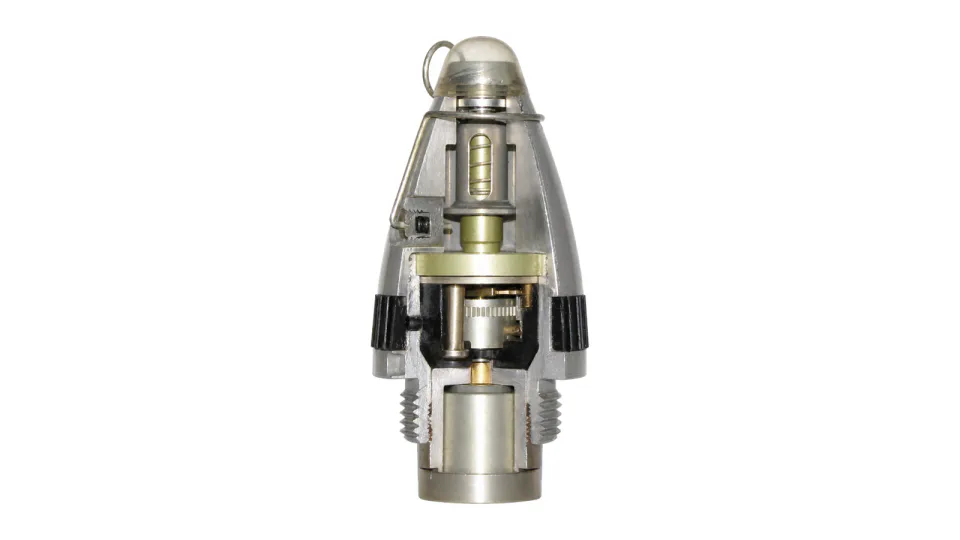

Mechanical point-detonating mortar fuze with selectable superquick or delay action, interrupted explosive train and arming status indicator.
Specification
| Fuze type | PD (point-detonating), mechanical, impact |
|---|---|
| Action modes | Superquick 'T' or delay 'U', selectable by mode selector |
| Ammunition compatibility | HE mortar shells of all calibres with compatible bearings or via adaptor |
| Safety standard | MIL-STD-1316B; low-explosive train interrupted; armed / non-armed status indicator |
| Arming | Inertia type, acceleration 400 g to 13000 g |
| Muzzle safety at 68 m/s initial velocity | min. 50 m |
| Time delay | 30 ms to 50 ms |
| Drop safety | 3 m |
| Moisture proofness | 0.5 bar pressure |
| Fuze mass | 240 g |
| Fuze length | max. 105 mm (max. 28 mm entering the shell) |
| Connecting thread | 1.5 in - 12 UNF-1A |
| Max fuze diameter | 49 mm |
| Temperature range of use | -54 to +71 deg C |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
