M87

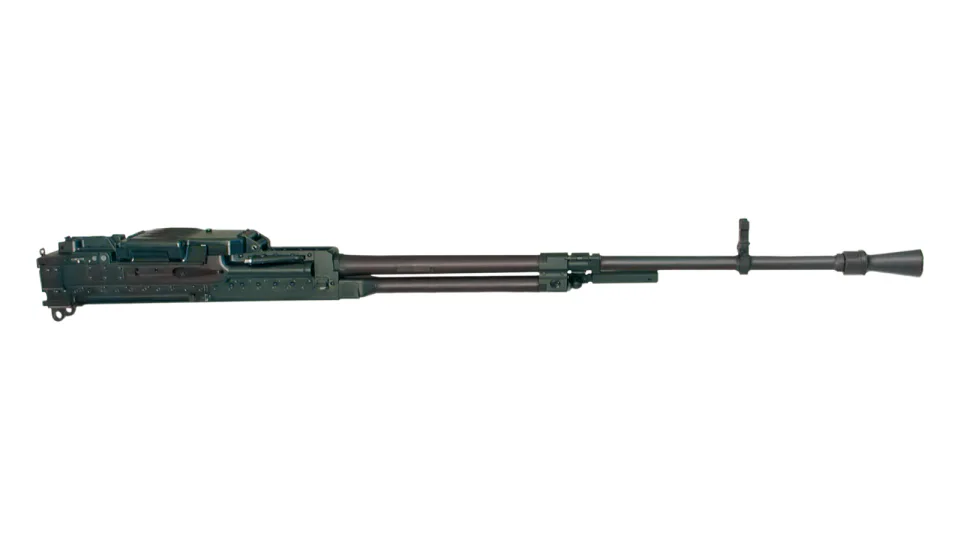

M87 Heavy Machine Gun
12.7x108 mm heavy machine gun for anti-aircraft, ground and coastal fire, with forward case ejection and quick-change spare barrel.
Also written: 12,7x108, 12.7 Russian, 12.7 mm DShK, 12.7 x 108, 12.7X108, 12.7x108, 127x108, DShK

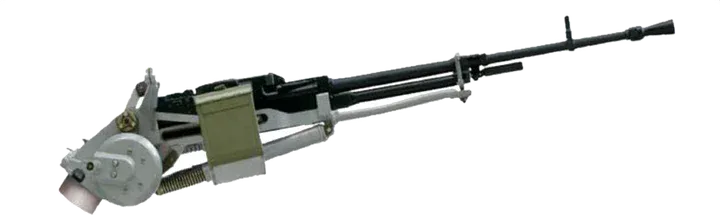

Show M87 Heavy Machine Gun, view 1 of 3Show M87 Heavy Machine Gun, naval/tank mountShow M87 Heavy Machine Gun, ammunition box
Enlarge M87 Heavy Machine GunEnlarge M87 Heavy Machine Gun, naval/tank mountEnlarge M87 Heavy Machine Gun, ammunition box
Specification
| Calibre | 12.7x108 mm |
|---|---|
| Weight of weapon | 24.8 kg |
| Weight of spare barrel | 9.3 kg |
| Total length | 1560 mm |
| Barrel length | 1100 mm |
| Type of fire | Automatic |
| Operation | Gas |
| Locking system | Open bolt |
| Rate of fire | 700 rds/min |
| Maximum effective range | 1500 m |

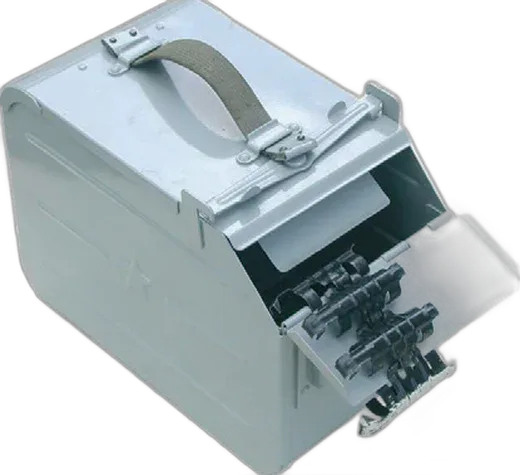

| Ammunition box | 60 rds |
| Case ejection | Forward |
| Delivered with | Spares including spare barrel, accessories, ammunition boxes and cartridge belts; belt filler as an option |
All data provided for information purposes; final specification is defined per contract.
