A-341
12.7 x 108 mm Ball
Ball cartridge with tombac plated steel jacket and aluminium tipped lead/antimony core for 12.7 x 108 mm machine guns.
Also written: 12,7x108, 12.7 Russian, 12.7 mm DShK, 12.7 x 108, 12.7X108, 12.7x108, 127x108, DShK

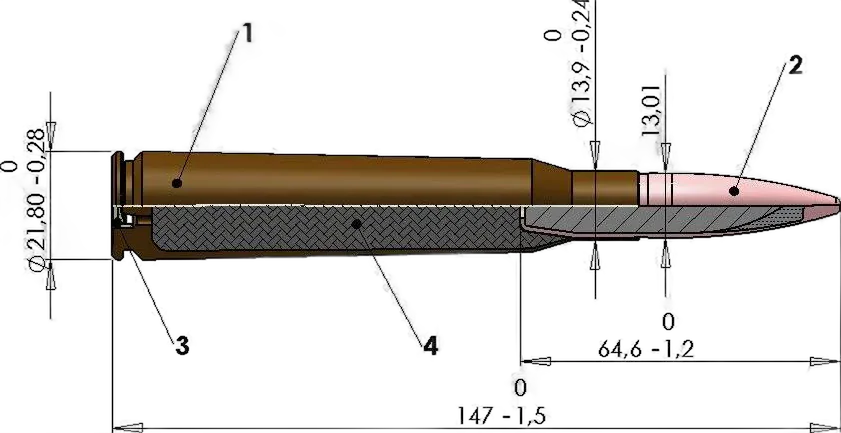

Show 12.7 x 108 mm Ball, view 1 of 2Show 12.7 x 108 mm Ball, sectioned with dimensions
Enlarge 12.7 x 108 mm BallEnlarge 12.7 x 108 mm Ball, sectioned with dimensions
Specification
| Index | A-341 |
|---|---|
| Bullet type | BALL, tombac plated steel jacket, aluminium top with lead/antimony core |
| Bullet mass | 51.3 g / 792 gr |
| Cartridge mass | 134 g |
| Average velocity | 810-825 m/s at 25 m (V25) |
| Usage | 12.7 x 108 mm machine guns |
| Primer | large rifle 12.7 DSK, Berdan |
| Propellant | single or double base powder |
| Temperature interval | -54 to +52 deg C |
| Packaging | 100 rds in 12.7 DSK box, 16.5 kg |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
