FAB-100 M80
100 kg HE aircraft bomb FAB-100 M80
A 117 kg high-explosive free-fall aircraft bomb with a 39 kg TNT main charge, intended for targets of medium fortification level and releasable safe or armed at speeds up to 1000 km/h.

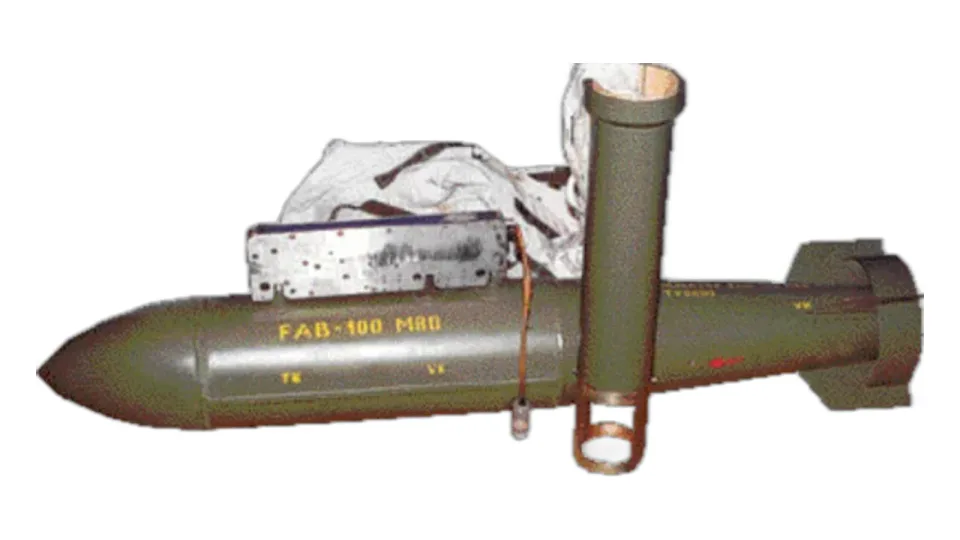

Show 100 kg HE aircraft bomb FAB-100 M80, view 1 of 3Show 100 kg HE aircraft bomb FAB-100 M80, with retarder setShow 100 kg HE aircraft bomb FAB-100 M80, sectioned drawing
Enlarge 100 kg HE aircraft bomb FAB-100 M80Enlarge 100 kg HE aircraft bomb FAB-100 M80, with retarder setEnlarge 100 kg HE aircraft bomb FAB-100 M80, sectioned drawing
Specification
| Bomb type | FAB-100 M80 |
|---|---|
| Diameter | 230 mm |
| Length | 1490 mm |
| Hook spacing (adaptable to A/C bomb rack) | 250 and 355.6 mm |
| Weight without fuzes | 117 kg |
| Main explosive charge (TNT) | 39 kg |
| Fuze type | AVU-ET 1 or 2; AUFK 1 or 2 |
| Packing (bodies) | 12 bodies (4 x 3) one crate |
| Case dimension (bodies) | 1020 x 800 x 1600 mm |
| Case gross weight (bodies) | 1450 kg |
| Case volume (bodies) | 1.3 m3 |
| Packing (fins) | 12 fins (24 hooks) one crate |
| Case dimension (fins) | 1160 x 900 x 760 mm |
| Case gross weight (fins) | 170 kg |
| Case volume (fins) | 0.8 m3 |
| UN No. | 0034 |
| Hazard class | 1.1D |
| Release speed | up to 1000 km/h |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
