ES LRF-20/M
ES LRF-20/M laser rangefinder module
Eye-safe erbium glass laser rangefinder module measuring to 20 km, with integral rectification scope and RS232/RS422 interface for system integration.

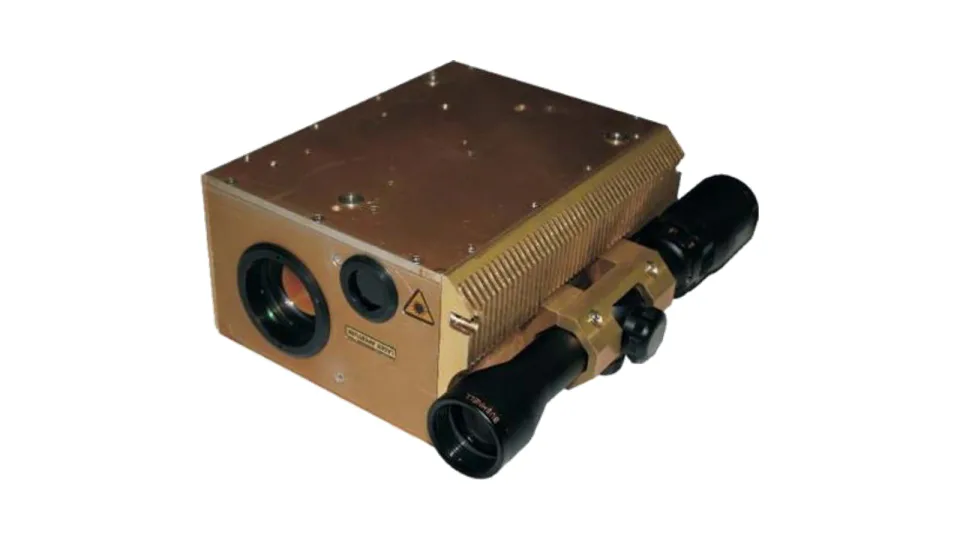

Enlarge ES LRF-20/M laser rangefinder module
Specification
| Range | 80 m to 20000 m |
|---|---|
| Accuracy | +/-5 m |
| Blocked range | 80 m to 5000 m |
| Wavelength | 1540 nm |
| Energy | <= 8 mJ |
| Beam divergence | <= 1 mrad |
| Measuring frequency | One burst per minute, 20 pulses at 1 Hz |
| Connection | RS232 / RS422 |
| Operating temperature | -30 deg C to +50 deg C |
| Power supply | 20-30 VDC, < 2.5 A |
| Scope optical zoom | 1.5x to 4.5x |
| Scope field of view at 1000 m | 22.3 m at 1.5x; 7.7 m at 4.5x |
| Weight | 267 g |
| Length | 268 mm |
All data provided for information purposes; final specification is defined per contract.
