DAMON (Medium Range)

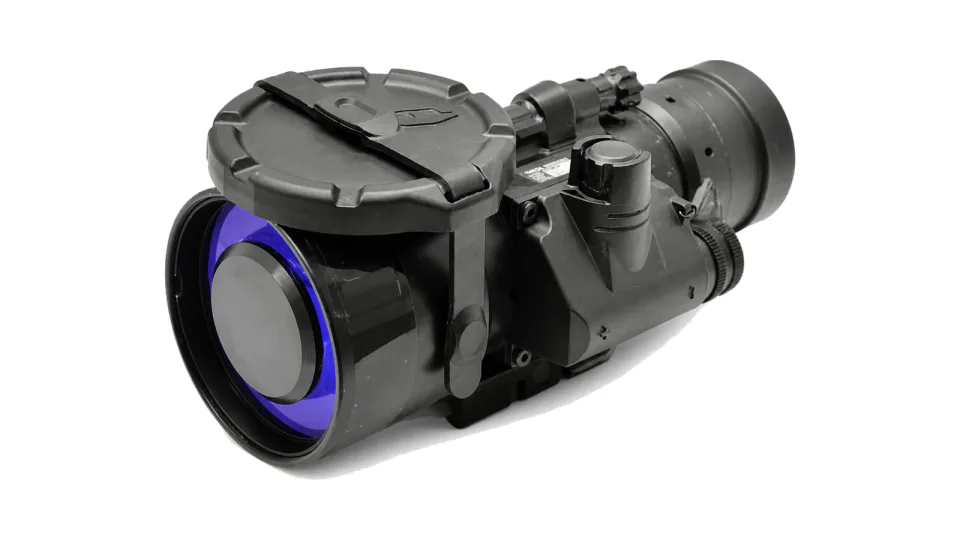

DAMON medium range clip-on night vision device
Medium range clip-on night vision device used in tandem with a day sight, retaining the day optic ballistic zero, with manual gain and focus controls.
Enlarge DAMON medium range clip-on night vision device
Specification
| Magnification | x1 |
|---|---|
| Field of view | 13.7 deg |
| Identification distance man/vehicle | 250 m / 720 m |
| Recognition distance man/vehicle | 430 m / 1100 m |
| System focus | 10 m to infinity |
| System resolution | > 3.3 lp/mrad |
| Image intensifier | Gen III |
| Power supply | 1 x AA |
| Battery life | > 60 hours |
| Weight | < 0.900 kg |
| Mounting | Picatinny rail (optional single lever mounts) |
| Environmental | Complies with MIL-STD-810 |
All data provided for information purposes; final specification is defined per contract.
