CS / CS 00

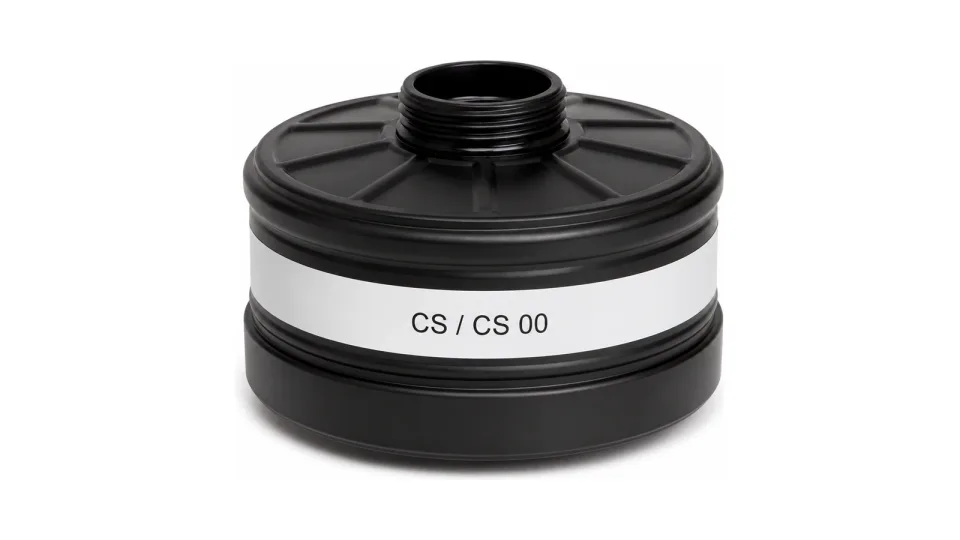

CS riot-control filter
Low-profile filter dedicated to CS and CN protection, shaped so it does not obstruct the protective eyepiece of police helmets.
Enlarge CS riot-control filter
Specification
| Filter dimensions | dia. 110 x 77 mm (CS); dia. 110 x 63 mm (CS 00) |
|---|---|
| Filter weight | max. 250 g (CS); max. 170 g (CS 00), without plug and cover |
| Connection thread | Rd 40x1/7 in accordance with EN 148-1 |
| Pressure drop | max. 140 Pa (CS) / max. 100 Pa (CS 00) at flow of 30 l/min |
| Filter efficiency | min. 99.99% |
| Protection against | Chloracetophenone (HAF) and o-chlorobenzylidene malononitrile (CS) only |
| Compatibility | Clears the protective eyepiece of police helmets when fitted to a protective or panorama mask |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
