AK E2 Assault Rifle
Gas-operated 7.62x39 mm assault rifle of the AK E group with a receiver-side rail for mounting a Picatinny rail adapter.
Also written: 7,62x39, 7.62, 7.62 M43, 7.62 Soviet, 7.62 x 39, 7.62X39, 7.62x39, 762x39

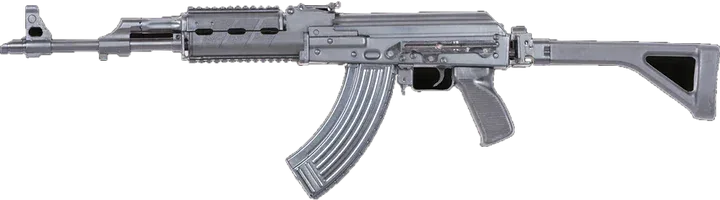

Show AK E2 Assault Rifle, view 1 of 2Show AK E2 Assault Rifle, opposite side
Enlarge AK E2 Assault RifleEnlarge AK E2 Assault Rifle, opposite side
Specification
| Calibre | 7.62x39 mm |
|---|---|
| Magazine capacity | 30 rds |
| Weight of weapon with empty polymer magazine | 4.00 kg |
| Weight of polymer magazine | 0.24 kg |
| Total length | 934 mm / 689 mm with stock folded |
| Barrel length | 415 mm |
| Type of fire | Semi-automatic and automatic |
| Operation | Gas |
| Locking system | Rotating bolt |
| Rate of fire | 620 +/- 60 rds/min |
| Sights | Iron sights with tritium tubes, rear sight graduated to 1000 m |
| Rail interface | Picatinny rails at 12 and 6 o'clock on handguards; side rail on left of receiver |
| Options | Mount with Picatinny rail, underbarrel grenade launcher BGP 40 mm |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
