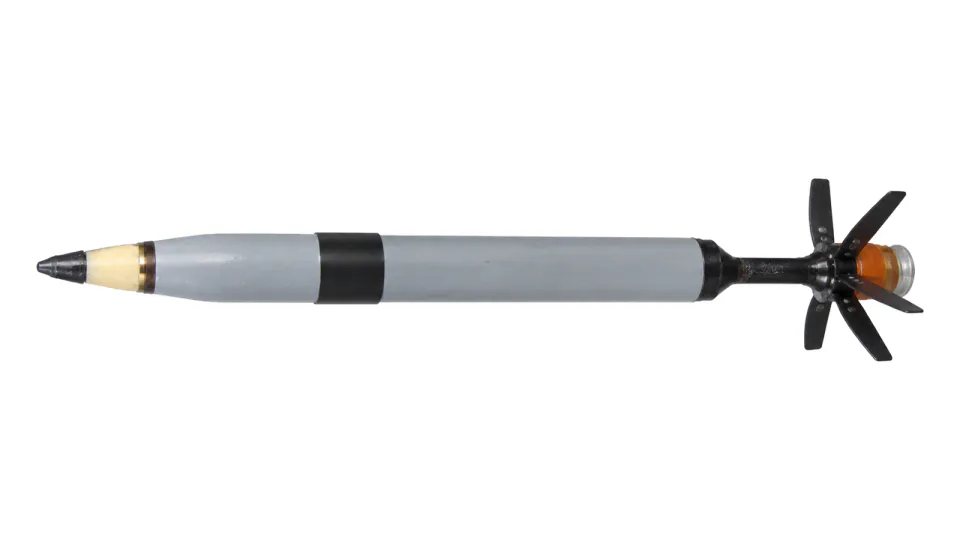

57 mm practice rocket with signal head
57 mm practice rocket with rocket motor and signal head, launched from the inserted barrel of a 128 mm practice rocket for short-range crew training.
Also written: 57
Enlarge 57 mm practice rocket with signal head
Specification
| Calibre | 57 mm |
|---|---|
| Rocket mass | 3.7 kg |
| Fuze | UTI-2P3 |
| Signalling compound total mass | 0.2 kg |
| Photoflash compound | 0.15 kg |
| Black powder No. 8 | 0.05 kg |
| Stabilisation | Aerodynamic, 8 fins |
| Training range | Short distance targets up to 3500 m |
All data provided for information purposes; final specification is defined per contract.
