M200 / M200A1
5.56 x 45 mm Blank M200 and M200A1
Bulletless rifle cartridge for 5.56 x 45 mm rifles and machine guns; M200 to MIL-C-60616C, long M200A1 to MIL-C-70724C.
Also written: .223 Rem, .223 Remington, 5,56x45, 5.56, 5.56 NATO, 5.56 x 45, 5.56X45, 5.56x45

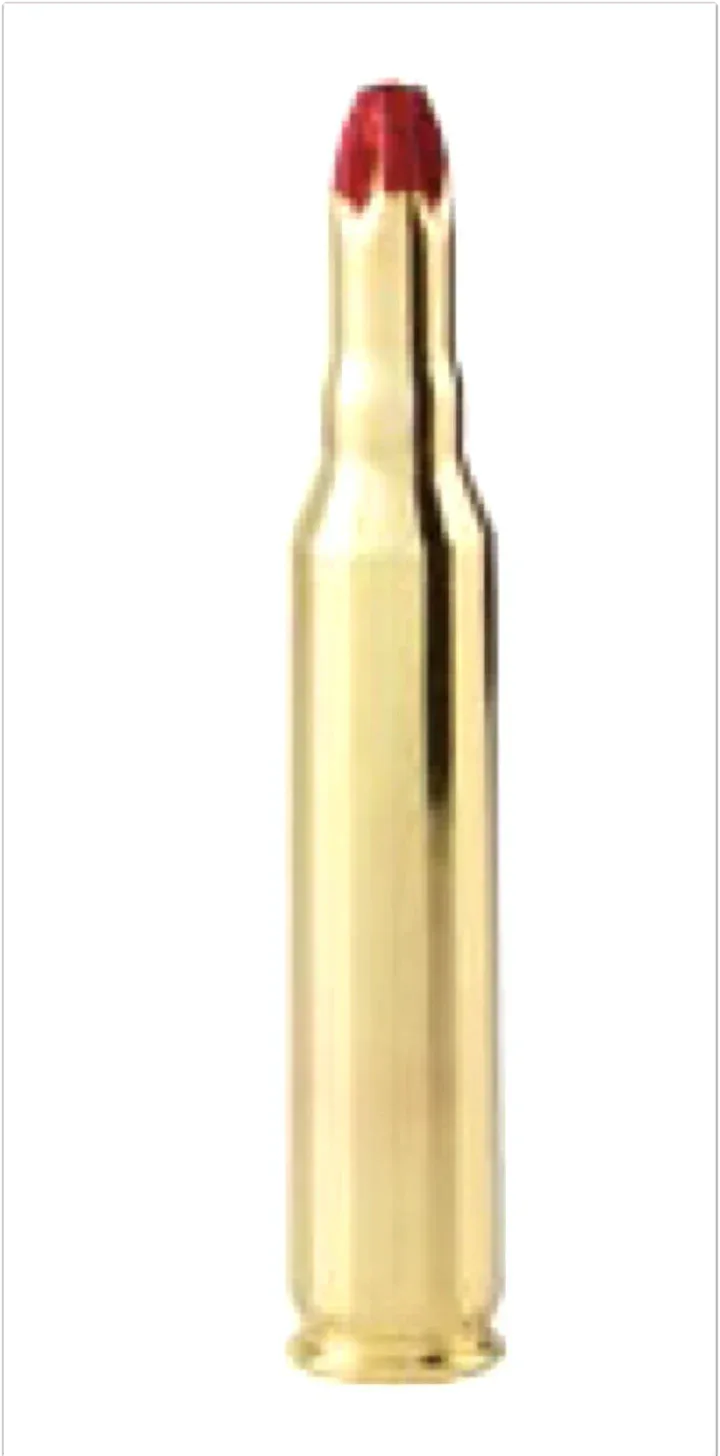

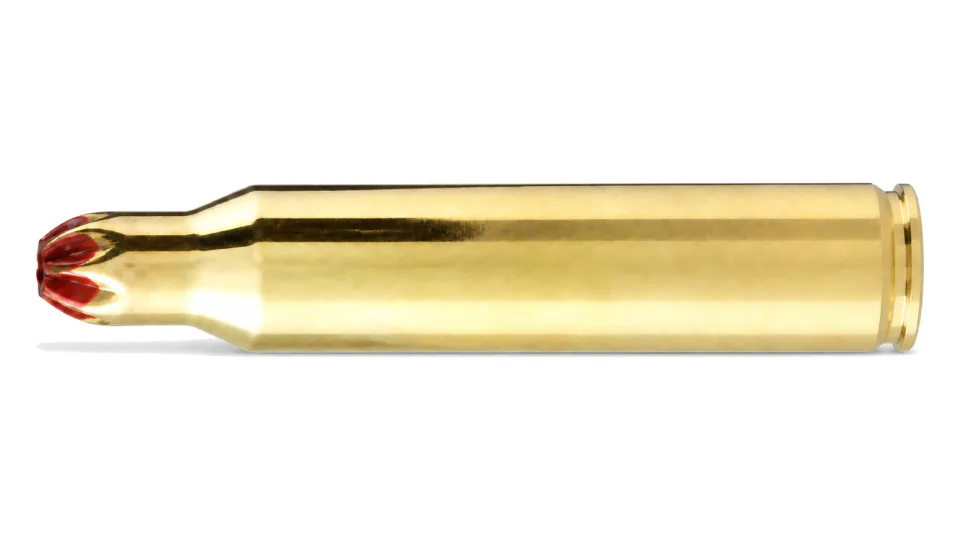

Show 5.56 x 45 mm Blank M200 and M200A1, view 1 of 2Show 5.56 x 45 mm Blank M200 and M200A1, M200A1 variant
Enlarge 5.56 x 45 mm Blank M200 and M200A1Enlarge 5.56 x 45 mm Blank M200 and M200A1, M200A1 variant
Specification
| Index | A-394 |
|---|---|
| Standard | MIL-C-60616C (M200); MIL-C-70724C (M200A1 Long) |
| Cartridge mass | 6.9 g (M200); 7.2 g (M200A1) |
| Usage | 5.56 x 45 mm rifles and machine guns |
| Primer | small rifle, non-corrosive, non-mercuric, boxer |
| Propellant | special blank powder |
| Temperature interval | -20 to +52 deg C |
| Packaging | 1000 rds in M2A1 box, 10.5 kg |
All data provided for information purposes; final specification is defined per contract.
