M03
155 mm HE ERFB-BB projectile M03
Extended-range full-bore base-bleed 155 mm high-explosive projectile reaching 41100 m on charge zone 10.
Also written: 155

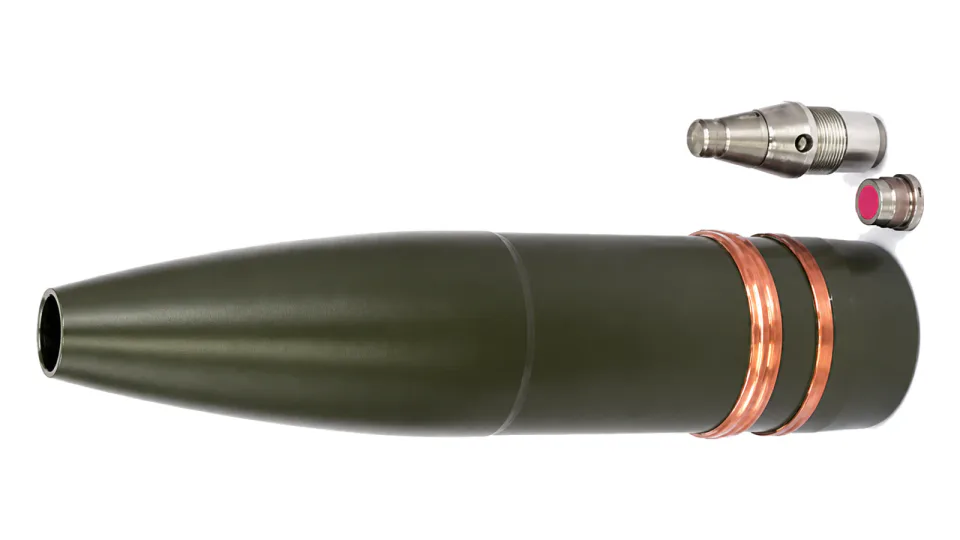

Show 155 mm HE ERFB-BB projectile M03, view 1 of 2Show 155 mm HE ERFB-BB projectile M03, projectile and fuze components
Enlarge 155 mm HE ERFB-BB projectile M03Enlarge 155 mm HE ERFB-BB projectile M03, projectile and fuze components
Specification
| Projectile weight | approx. 47.6 kg |
|---|---|
| Explosive charge | approx. 8.7 kg TNT |
| Propellant weight | approx. 15.6 kg (zone 10) |
| Projectile length with fuze | approx. 938 mm |
| Propelling charge | MC zone 10 |
| Propellant type | NCD-19 (zone 10) |
| Primer | TK M82 P2 |
| Muzzle velocity | approx. 925 m/s (zone 10) |
| Maximum range | approx. 41100 m (zone 10) |
| Mean maximum pressure of powder gases | approx. 3250 bar (zone 10) |
| Fuze | UTIU, M02 |
| Weapon compatibility | 155 mm self-propelled gun-howitzer NORA B52 M03 |
| Packaging | projectiles, MC propelling charges (zone 10) and fuzes UTIU M02 packed separately |
All data provided for information purposes; final specification is defined per contract.
