B32

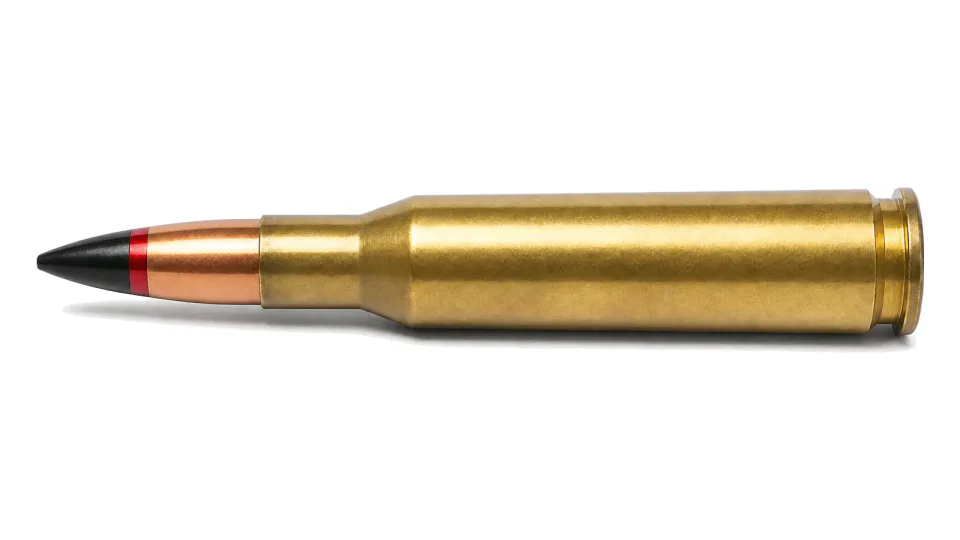

14.5 x 114 mm API B32
Armour piercing incendiary cartridge with hard steel core bullet for 14.5 x 114 mm heavy machine guns.
Also written: 14,5x114, 14.5, 14.5 mm KPV, 14.5 x 114, 14.5X114, 14.5x114, 145x114, KPV
Specification
| Calibre | 14.5 mm |
|---|---|
| Round mass | 210 g |
| Projectile mass | 64 g |
| Propellant mass | 30.5 g |
| Round length | 156 mm |
| Muzzle velocity | 980 to 1000 m/s |
| Mean max pressure | 3500 bar for group of rounds |
| Accuracy | R50 max. 20 cm at 300 m |
| Armour piercing capacity | min. 80 percent through 20 mm armour at 100 m |
| Incendiary capacity | min. 80 percent on gasoline behind 20 mm armour at 100 m |
| Bullet construction | cladded steel jacket, hard steel core, incendiary composition, violet and red tip |
| Weapon compatibility | 14.5 x 114 mm KPV, KPVT, ZU2 and MR4 |
| Packaging | 80 rds packed in two M2A1 metal cases, cases packed in a wooden case |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
