M77/94
128 mm self-propelled multi-tube rocket launcher OGANJ C
Self-propelled 128 mm multi-tube rocket launcher on a 6x6 truck chassis, firing the point-detonating demolition rocket M77 to 21500 m.
Also written: 128

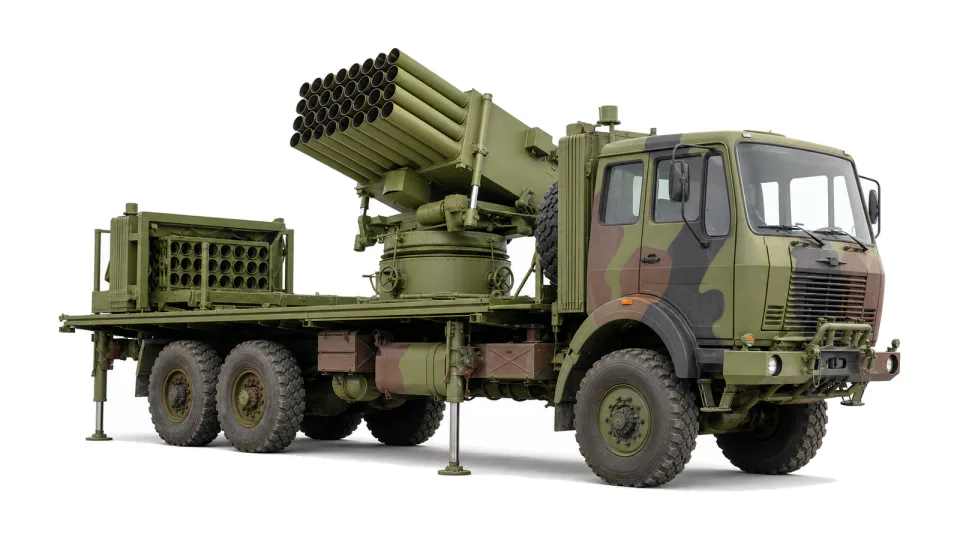

Enlarge 128 mm self-propelled multi-tube rocket launcher OGANJ C
Specification
| Calibre | 128 mm |
|---|---|
| Maximum range | 21500 m |
| Firing rate | 2 rockets/s |
| Number of tubes | 24 or 32 |
| Combat kit | 64 rockets |
| Number of operators | 2 + 4 |
| System total mass | 22000 kg |
| Field of action by direction | 180 deg |
| Field of action by elevation | 0 to 50 deg |
| Temperature range of use | -30 to +40 deg C |
| Deployment time | 30 s |
| Carrier | 6x6 truck chassis; mountable on other vehicles of similar characteristics |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
