M88P1
125 mm HEAT-T shell M88P1
Separate-loaded 125 mm HEAT-T M88P1 round for the D-81/2A46 tank gun, with 905 m/s muzzle velocity and 4000 m maximum effective range.
Also written: 125

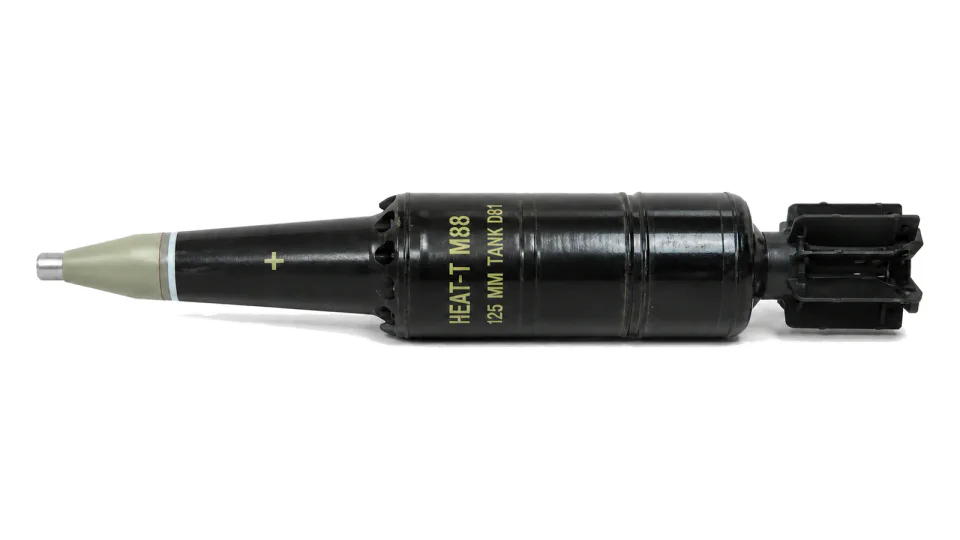

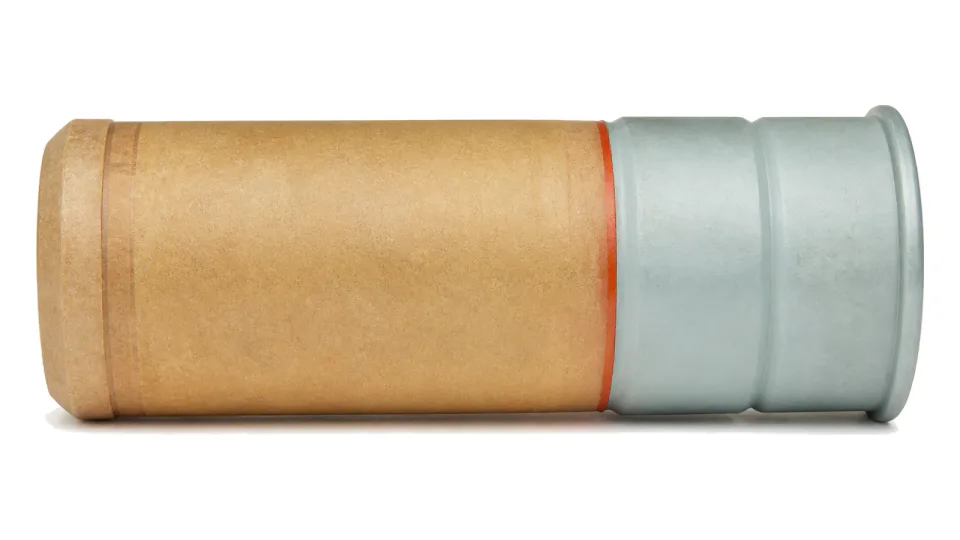

Show 125 mm HEAT-T shell M88P1, view 1 of 2Show 125 mm HEAT-T shell M88P1, separate propelling charge
Enlarge 125 mm HEAT-T shell M88P1Enlarge 125 mm HEAT-T shell M88P1, separate propelling charge
Specification
| Calibre | 125 mm |
|---|---|
| Projectile muzzle velocity | 905 m/s |
| Mean maximum pressure of powder gases | 2942 bar |
| Maximum effective range | 4000 m |
| Projectile length with fuze | 678 mm |
| Projectile mass, tabular | 19 kg |
| Projectile penetration | 400 mm |
| Tracer burning time | 4 s |
| Base propellant charge | M88 |
| Base propellant charge mass | 9.5 kg |
| Fuze | UT-PE M87P1, upper and lower, mechanical and piezoelectric |
| Tracer | No 12 |
| Primer | KT-EU M84 electro-shock primer |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 125 mm tank gun D-81, TM (2A46) |
All data provided for information purposes; final specification is defined per contract.
