M69
100 mm HEAT-T shell M69
Fixed 100 mm shaped-charge tracer anti-armour round with RDX charge, penetration 300 mm.
Also written: 100

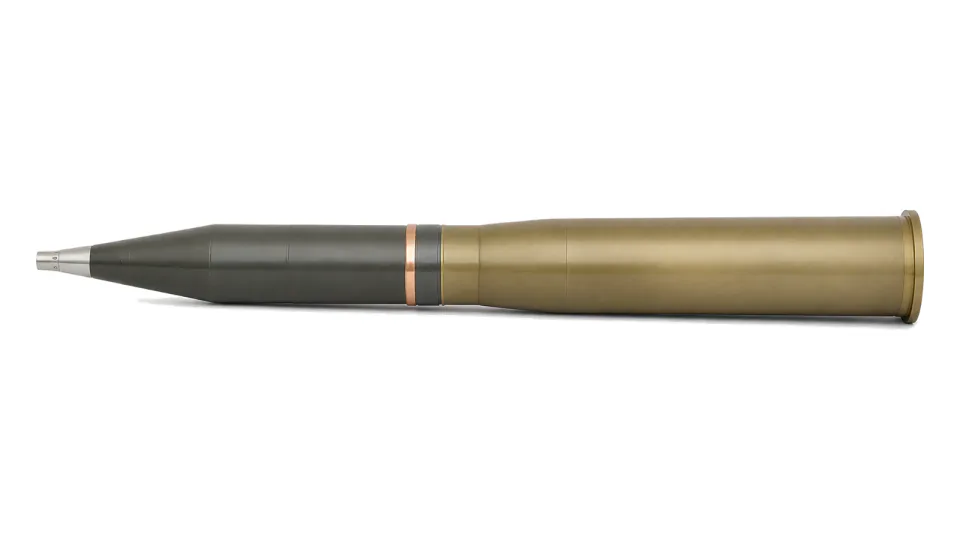

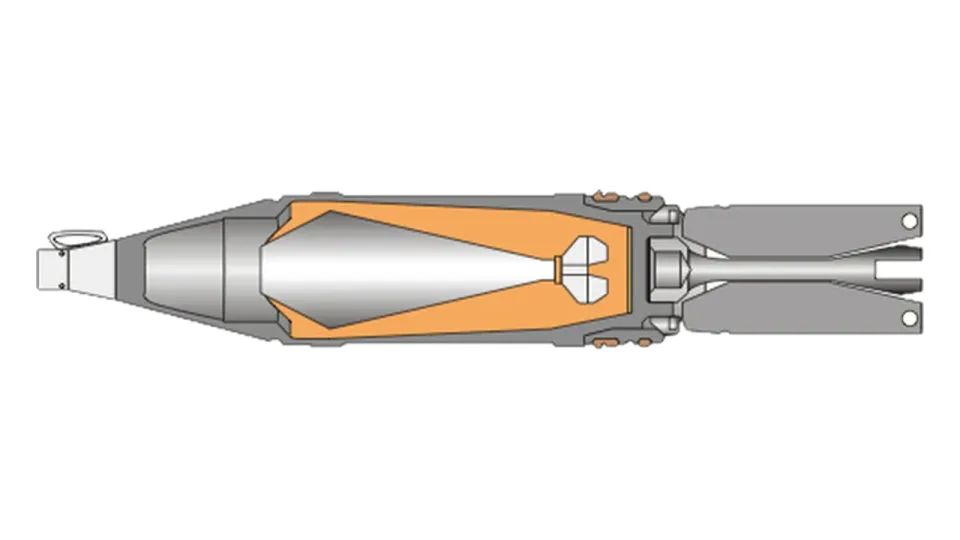

Show 100 mm HEAT-T shell M69, view 1 of 2Show 100 mm HEAT-T shell M69, technical section
Enlarge 100 mm HEAT-T shell M69Enlarge 100 mm HEAT-T shell M69, technical section
Specification
| Projectile weight | 12.2 kg |
|---|---|
| Explosive charge | 1.00 kg RDX |
| Propellant charge | 4.25 kg |
| Complete round weight | 25.6 kg |
| Complete round length | 1094 mm |
| Projectile length | 638 mm |
| Cartridge case length | 695 mm |
| Muzzle velocity | 900 m/s |
| Combat range | 3000 m |
| Penetration | 300 mm |
| Tracer burning time | 5 s |
| Fuze | UTU M72B1, impact, superquick and delay action |
| Weapon compatibility | 100 mm tank gun (T-55), 100 mm SPG M44, 100 mm coastal gun M87 |
| Packaging | 2 rounds in a wooden case |
All data provided for information purposes; final specification is defined per contract.
