9M14P1
120 mm wire-guided antitank missile MALJUTKA
Wire-guided antitank missile with hollow-charge warhead, engaged out to 3000 m in manual (MCLOS) or semiautomatic (SACLOS) guidance mode.
Also written: 120

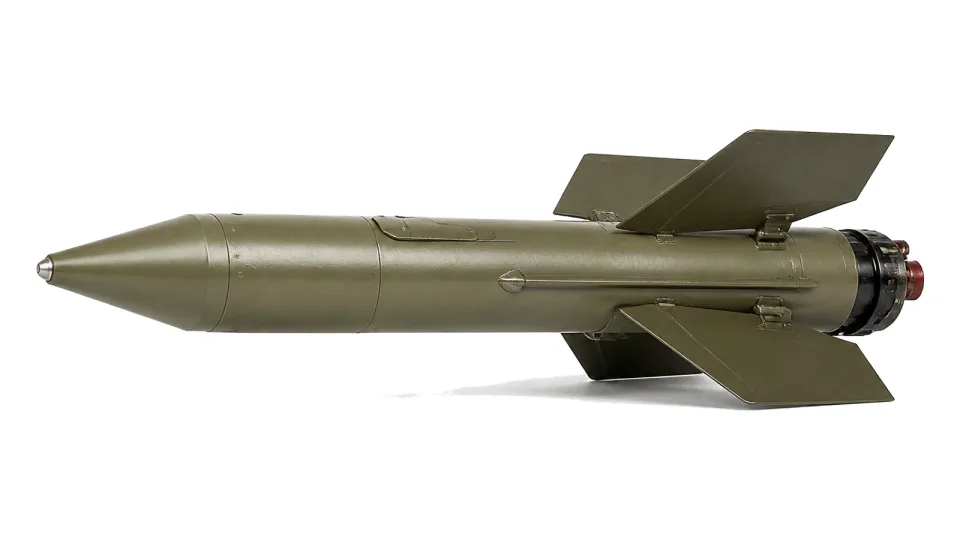

Enlarge 120 mm wire-guided antitank missile MALJUTKA
Specification
| Missile diameter | 120 mm |
|---|---|
| Warhead calibre | 120 mm |
| Length | 865 mm |
| Fin span | 460 mm |
| Launch weight | 11 kg |
| Armour penetrating capability | 460 mm |
| Maximum range | 3000 m |
| Maximum range flight time | 25 s |
| Firing rate | 2 missiles/min |
| Functional efficiency | 97 % |
| Guidance | Wire-guided command, optical tracking by sighting line |
| Propulsion | Two-stage solid-propellant motor |
| Operating temperature range | -40 to +50 deg C |
All data provided for information purposes; final specification is defined per contract.
