UTIU, M85P1
UTIU M85P1 artillery fuze
Point-detonating mechanical fuze of superquick and delay action for non-rotating HE projectiles of 100, 115 and 125 mm, mass 410 g.
Also written: 100 mm, 115 mm, 125 mm

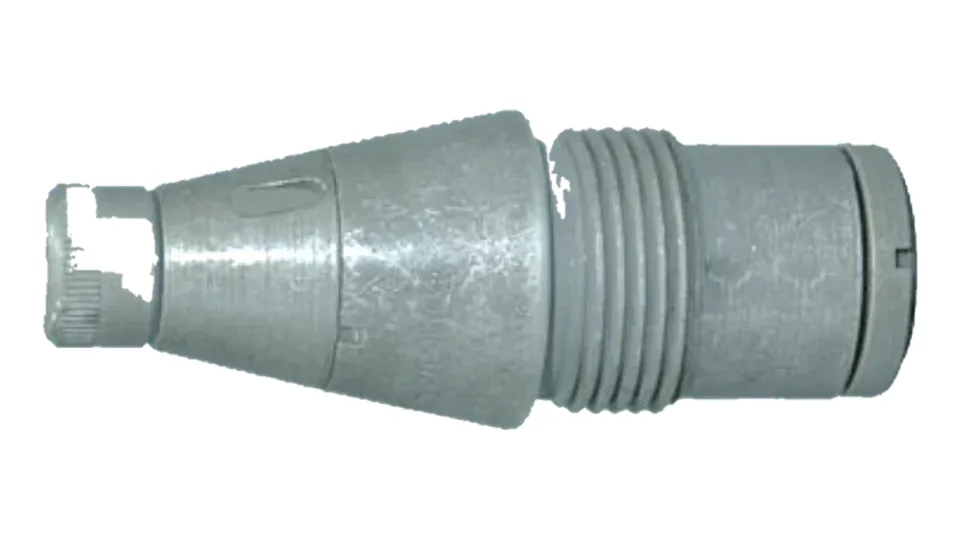

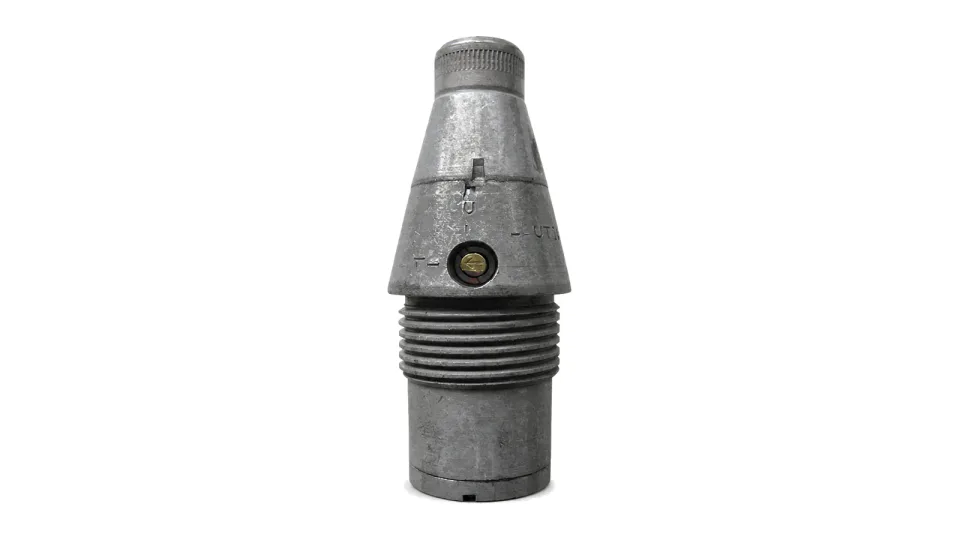

Show UTIU M85P1 artillery fuze, view 1 of 2Show UTIU M85P1 artillery fuze, opposite side
Enlarge UTIU M85P1 artillery fuzeEnlarge UTIU M85P1 artillery fuze, opposite side
Specification
| Fuze type | PD (point-detonating), mechanical |
|---|---|
| Action type | Superquick and delay |
| Ammunition compatibility | HE unrotating projectiles 100 mm, 115 mm and 125 mm |
| Safety standard | MIL-STD-1316B |
| Minimum arming conditions | Acceleration 24000 m/s2 |
| Drop safety | 3 m |
| Muzzle safety | min. 10 m |
| Temperature range of use | -40 to +50 deg C |
| Airtightness | Airtight |
| Mass | 410 g |
| Storage period | min. 15 years |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
