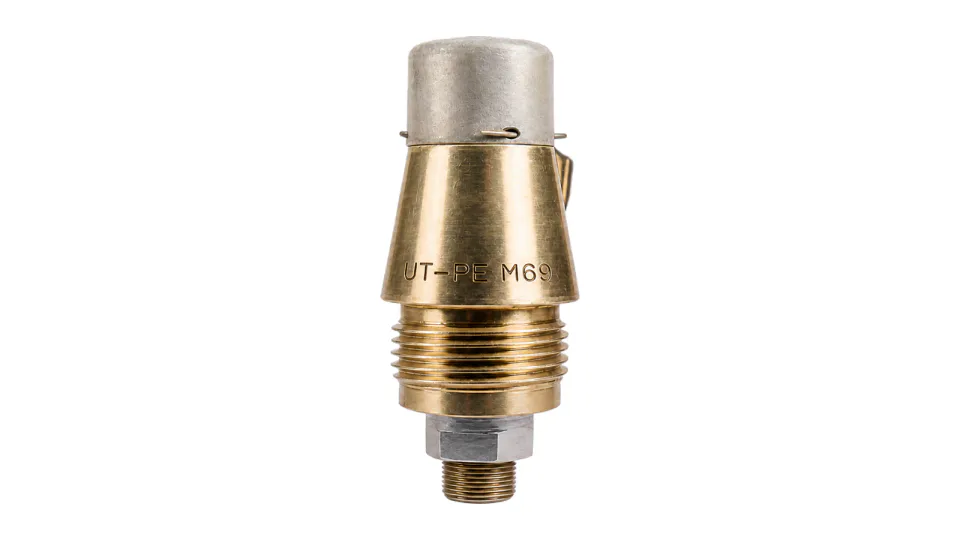

UT-PE M69 piezoelectric fuze
Piezoelectric superquick nose fuze for 90 mm and 100 mm HEAT-T shells, with interrupted explosive train and short-circuited electrodetonator.
Also written: 90 mm, 100 mm
Show UT-PE M69 piezoelectric fuze, view 1 of 2Show UT-PE M69 piezoelectric fuze, sectioned
Enlarge UT-PE M69 piezoelectric fuzeEnlarge UT-PE M69 piezoelectric fuze, sectioned
Specification
| Fuze type | Piezoelectric nose fuze |
|---|---|
| Action type | Superquick |
| Ammunition compatibility | HEAT-T shells 90 mm M74, 100 mm M69 and 100 mm M8 |
| Safety design | Interrupted explosive train, electrodetonator held in short circuit |
| Max acceleration | 250000 m/s2 |
| Drop safety | 3 m |
| Muzzle safety | 2.5 m |
| Temperature range of use | -30 to +50 deg C |
| Airtightness | Airtight |
| Mass | 191 g |
| Storage period | min. 10 years |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
