SUM7 MIL1

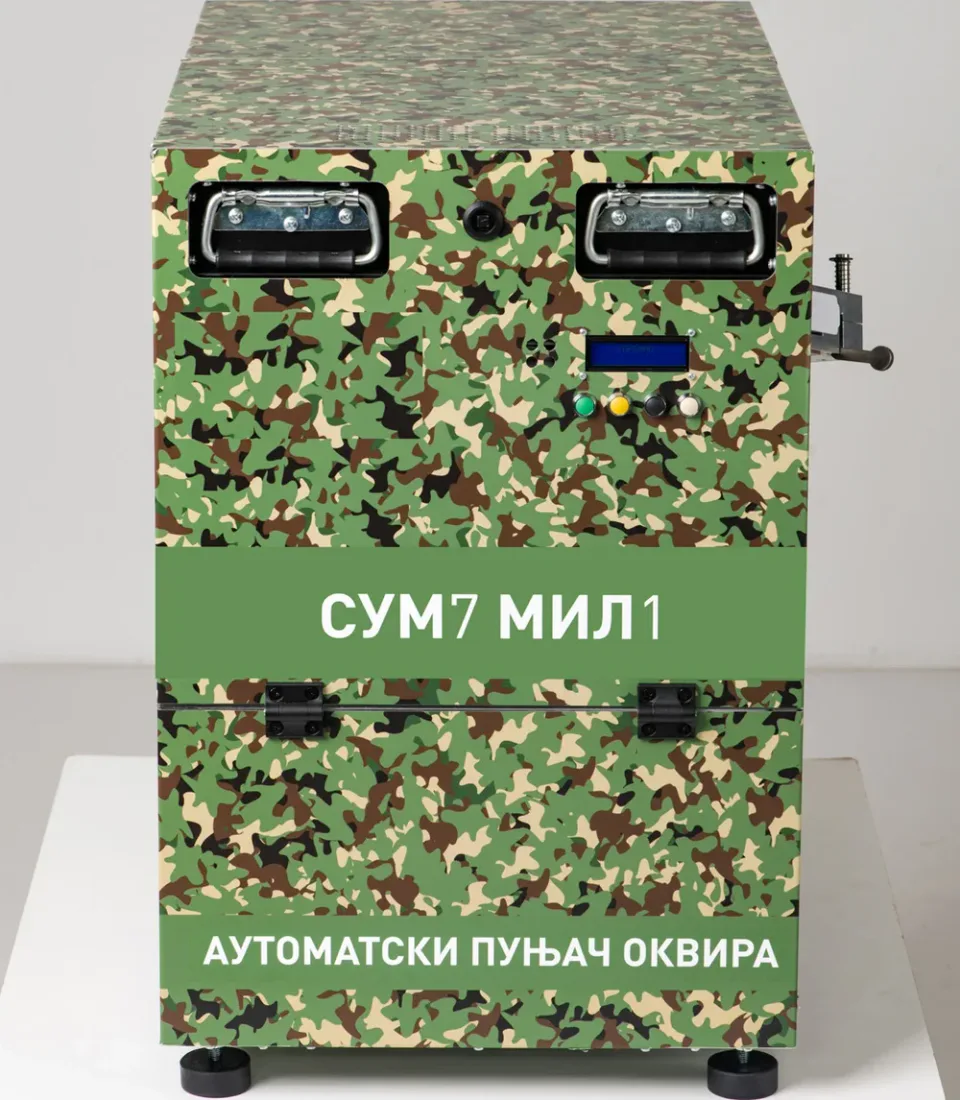

SUM7 MIL1 automated multi-calibre magazine loader
Electrically driven automated device for fast and safe loading of magazines of the most common rifle models in multiple calibres, which also stores ammunition in cassettes and provides RFID-based electronic administration, data collection and data processing of ammunition consumption.
Specification
| Ammunition storage calibers | 5.56×45, 7.62×39, 6.5 Grendel, .300 BLK, 5.45×39, .223, 204 Ruger, .224 Valkyrie, 25-45 Sharps, 6.8 SPC |
|---|---|
| Number of cassettes | 50 |
| Number of bullets in the cassette | up to 30 pcs. |
| Bullet caliber | multi caliber |
| Charge speed | 30 bullets > 1,35 sec. |
| Software | RFID, Radio-frequency identification |
| Weight | around 65 kg |
| Weight full capacity | around 95 kg |
| Dimensions | 700 x 650 x 450 mm |
| Power supply | 24~220 V |
| Drive assembly | Electrical |
| Storage capacity | 1500 bullets |
| Charging and preparation time (manual) | up to 35 min. |
| Number of loading mechanism | 1 |
| Rifle magazine loading speed | 30 bullets / 1.35 sec. |
| Life expectancy | 20 years; electronic components 10 years; mechanical components 5 years |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
