RBT-CS

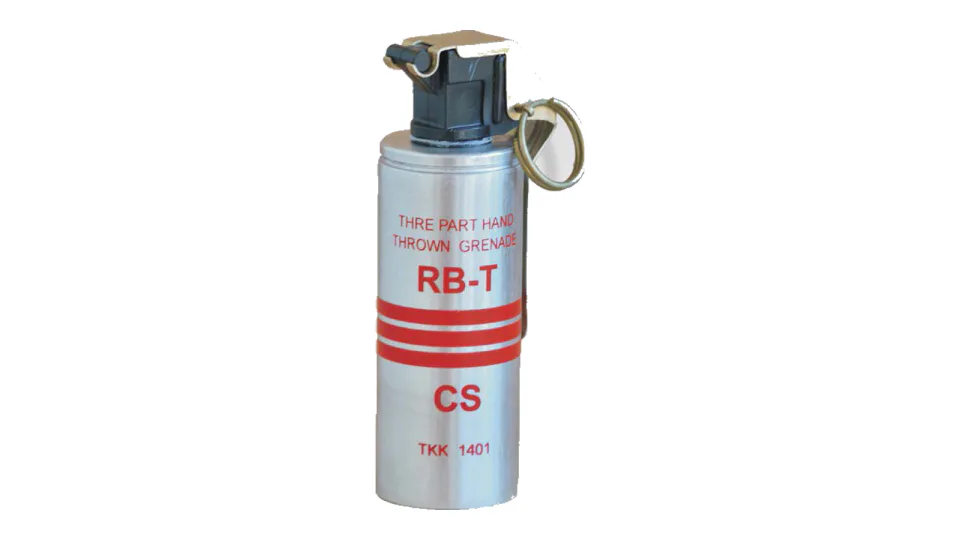

RBT-CS three-part CS hand grenade
A three-section CS hand grenade for crowd-control operations that contaminates an area in the open or indoors, emitting irritant smoke for about 20 seconds to temporarily disable an unprotected crowd without injury.
Enlarge RBT-CS three-part CS hand grenade
Specification
| Diameter | 38 mm |
|---|---|
| Height | 125 ± 2 mm |
| Mass of the grenade | 195 ± 5 g |
| Mass of pyrotechnic mixture | 60 ±2 g |
| Mass of one loading | 20 g |
| Number of loadings | 3 |
| Active loading | CS |
| Igniter | mechanical |
| Delay time | 3.0 ± 0.5 s |
| Activation | by hand |
| Smoke emission time | 20 ± 5 s |
| Shelf life | 5 years |
| Transport packing | waterproof carton box |
| Inner packing | PE bag |
| Dimensions of box | 420 x 265 x 90 mm |
| Number of units in the box | 32 |
All data provided for information purposes; final specification is defined per contract.
