RB-M2

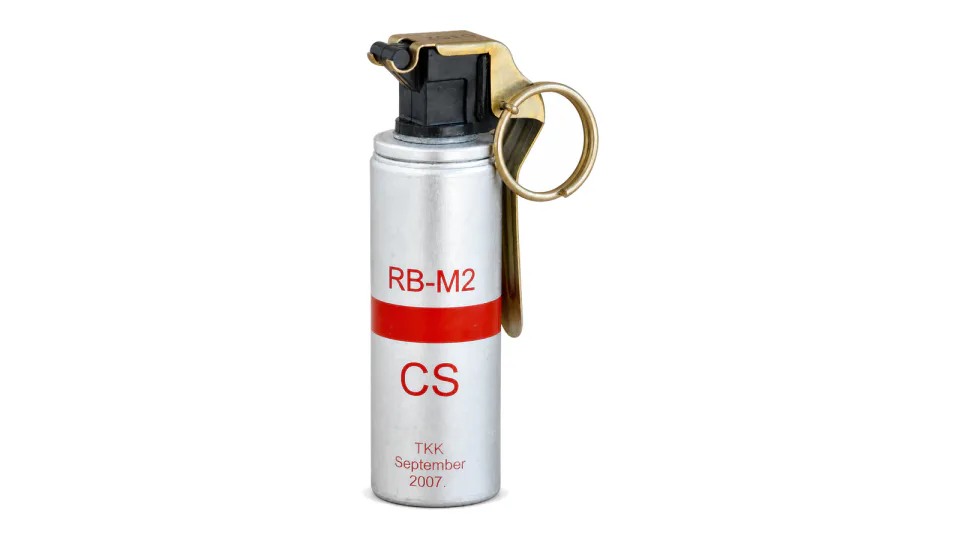

RB-M2 CS smoke hand grenade
Compact aluminium-bodied thermal-generating CS hand grenade for temporary incapacitation of crowds indoors and outdoors.
Show RB-M2 CS smoke hand grenade, view 1 of 2Show RB-M2 CS smoke hand grenade, CS smoke demonstration
Enlarge RB-M2 CS smoke hand grenadeEnlarge RB-M2 CS smoke hand grenade, CS smoke demonstration
Specification
| Diameter | 36.7 mm |
|---|---|
| Height | 127 +/- 2 mm |
| Mass of the grenade | 210 +/- 8 g |
| Mass of pyrotechnic mixture | 80 g |
| Active loading | CS |
| Igniter | Mechanical |
| Delay time | 3.0 +/- 0.5 s |
| Activation | By hand |
| Smoke emission time | 25 +/- 5 s |
| Body | Cylindrical aluminium |
| Shelf life | 5 years |
| Packaging | 32 units per waterproof carton box 90 x 420 x 265 mm, 8 kg gross |
| Classification | UN 0301, Class 1.4 G |
All data provided for information purposes; final specification is defined per contract.
