OCL-V / OCL-N

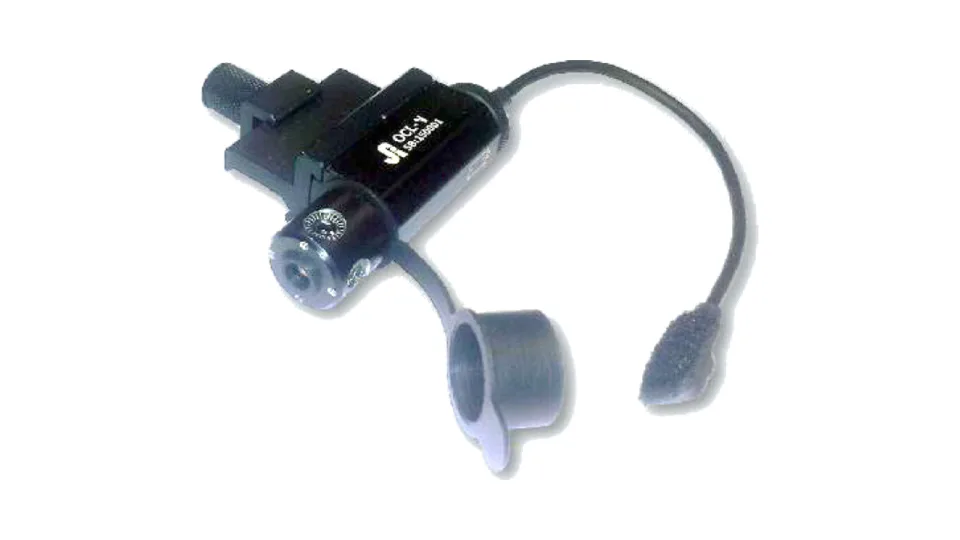

OCL-V and OCL-N laser target designator
Rail mounted laser designator attachment in two versions, V working in the visible and N in the invisible spectrum, waterproof to 2 m.
Enlarge OCL-V and OCL-N laser target designator
Specification
| Supply voltage | 3 V lithium battery, CR123 |
|---|---|
| Power consumption | < 60 mA |
| Light source wavelength | 650 nm visible (V) / 850 nm invisible (N) |
| Laser output power | < 5 mW |
| Horizontal/vertical adjustment | +1 m at 100 m |
| Laser beam divergence | 1 mrad (100 mm diameter at 100 m) |
| Visibility at night | visible > 200 m; invisible > 400 m |
| Waterproof | 2 m |
| Weight | 290 g with battery and mount |
| Mounting | Picatinny rail (MIL-STD-1913) |
All data provided for information purposes; final specification is defined per contract.
