NT-35 thermal imaging weapon sight
Uncooled thermal weapon sight with 35 mm lens for automatic rifles, detecting targets in total darkness, haze, dust and vegetation.

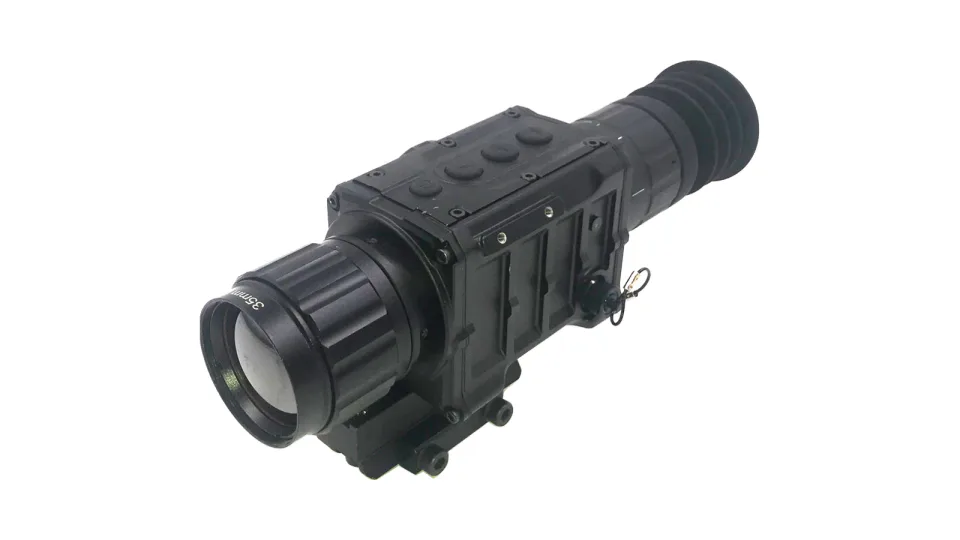

Enlarge NT-35 thermal imaging weapon sight
Specification
| IR resolution | 640x480 |
|---|---|
| Detector type | Uncooled FPA, 17 um pixel pitch |
| NETD | <= 70 mK |
| Lens | 35 mm, F 1.0 |
| Field of view | 18 deg x 13.3 deg |
| Detection distance (human) | 1140 m |
| Recognition distance (human) | 320 m |
| Eye relief | 27 mm (50 mm optional) |
| Diopter | -5 to +5 |
| Display | 800x600 AMOLED |
| Digital zoom | 2x, 4x |
| Imaging | 50 Hz, 3 s start-up |
| Battery type | 2 x CR123 |
| Mounting | Picatinny rail MIL-STD-1913 |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
