M93 Automatic Grenade Launcher
Tripod-mounted 30 mm automatic grenade launcher, belt-fed from a 29-grenade drum, engaging personnel to 1700 m and light armour to 1000 m.
Also written: 30

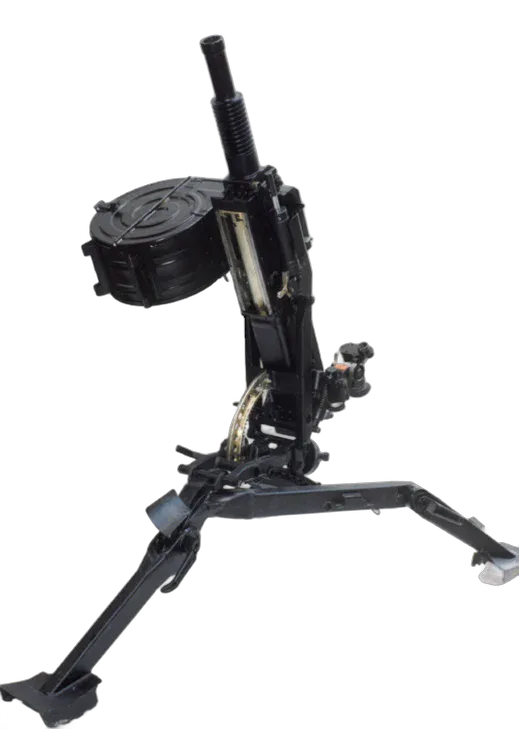

Show M93 Automatic Grenade Launcher, view 1 of 2Show M93 Automatic Grenade Launcher, at maximum elevation
Enlarge M93 Automatic Grenade LauncherEnlarge M93 Automatic Grenade Launcher, at maximum elevation
Specification
| Calibre | 30 mm |
|---|---|
| Drum capacity | 29 grenades |
| Weight of weapon with drum | 38 kg |
| Weight of tripod | 14 kg |
| Total length | 1305 mm |
| Barrel length | 300 mm |
| Type of fire | Automatic, bursts only, adjustable rate |
| Operation | Blowback |
| Locking system | Inertial |
| Maximum effective range | 1700 m |
| Range against light armoured vehicles | 1000 m |
| Ammunition | 30 mm HE, HEAT, practice and practice-marker grenades |
| Sighting device | NSBG-1 for direct, semi-direct and indirect aiming and low visibility |
| Options | Belt filler and rectification sight DR-30; mounting on combat vehicles and helicopters |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
