Level IV

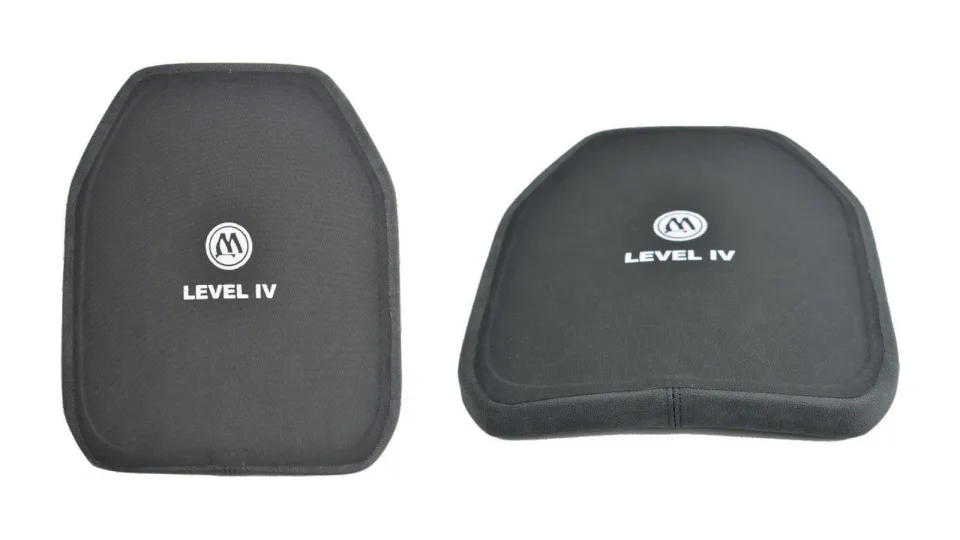

Ballistic plate Level IV
The highest level of ballistic plate protection, meeting Level IV of NIJ STD 0101.04 and preventing penetration of rifle bullets, shaped to fit the body contour for insertion into protective vest pockets and made in five sizes.
Specification
| Protection level | IV according to NIJ STD 0101.04 |
|---|---|
| Dimensions - size S | 250 mm x 300 mm |
| Dimensions - size L | 250 mm x 330 mm |
| Dimensions - size XL | 280 mm x 350 mm |
| Dimensions - additional sizes | 150 mm x 150 mm; 150 mm x 200 mm |
| Ballistic data - 7.62 x 39 mm Armor Piercing (AK 47) | bullet weight 7.97 g, maximum velocity 732 m/s |
| Ballistic data - 7.62 x 39 mm PS Ball (AK 47) | bullet weight 7.97 g, maximum velocity 732 m/s |
| Ballistic data - 5.56 mm SS109/M855 Armor Piercing (.223) | bullet weight 4 g, maximum velocity 945 m/s |
| Ballistic data - .30 Caliber M2 AP | bullet weight 10.8 g, maximum velocity 878 m/s |
All data provided for information purposes; final specification is defined per contract. Full technical data sheets are issued on request against a stated end-user.
