INTERKOM integrated vehicle communication system
An integrated vehicle communication system combining VoIP telephony, FXO and FXS lines, radio gateways, serial data links and the command post network, built from a central management unit, operator units and user units.

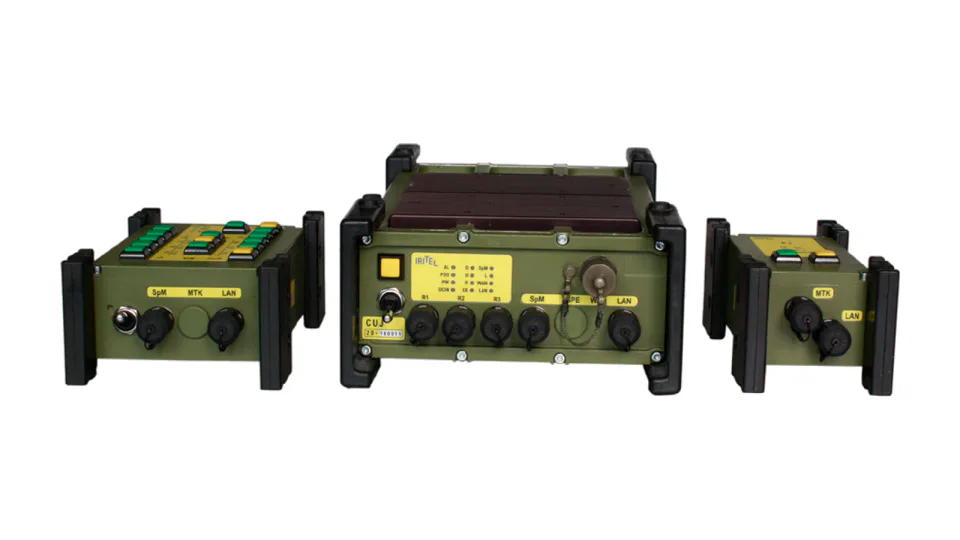

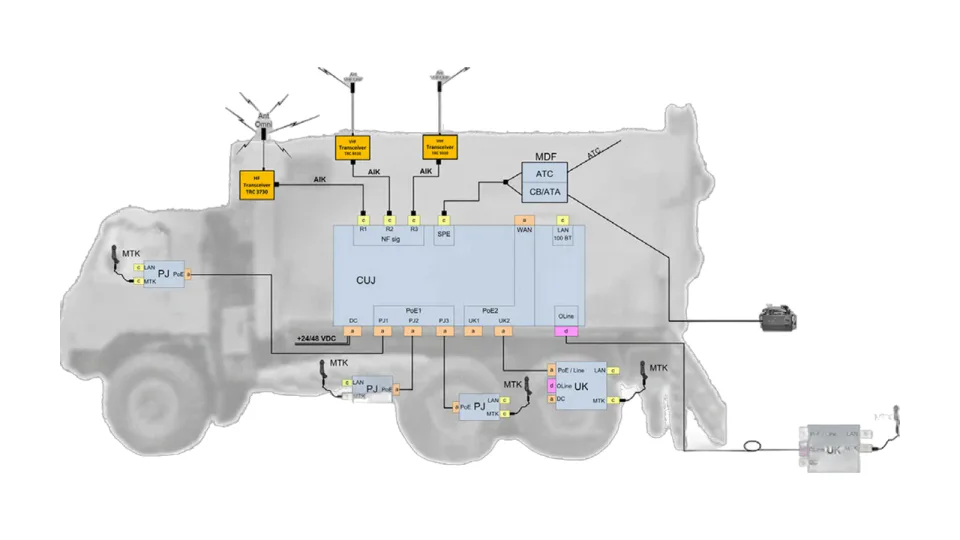

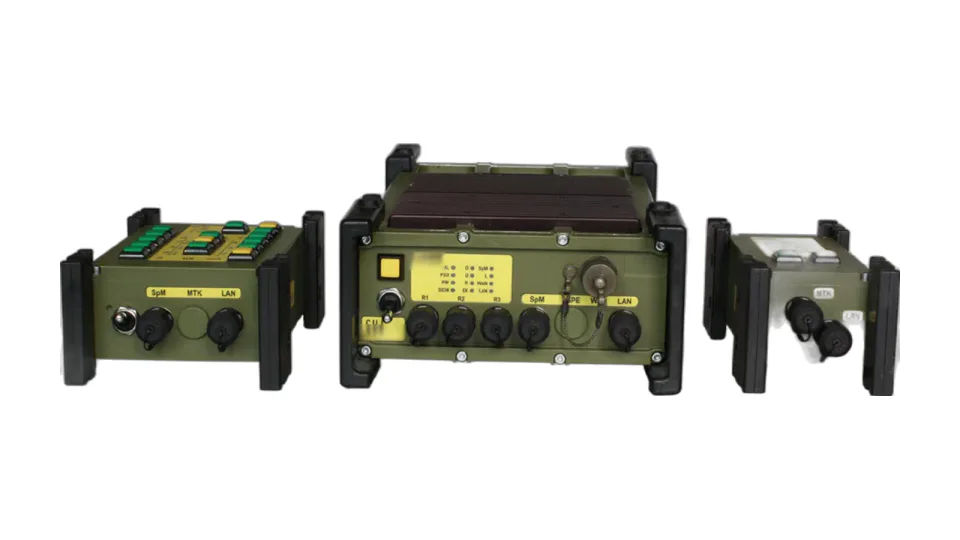

Show INTERKOM integrated vehicle communication system, view 1 of 3Show INTERKOM integrated vehicle communication system, opposite sideShow INTERKOM integrated vehicle communication system, vehicle installation
Enlarge INTERKOM integrated vehicle communication systemEnlarge INTERKOM integrated vehicle communication system, opposite sideEnlarge INTERKOM integrated vehicle communication system, vehicle installation
Specification
| System units | CUJ central management unit, UK operator unit, PJ user unit |
|---|---|
| User types | operator (full access), commander (limited access, uses UK), user (services over PJ, FXO, FXS, radio, remote user) |
| Services | calling, call forwarding, internal communication with UHF/VHF radio, conference call, urgent call, communication between vehicles via optical or electrical Ethernet port |
| Management | PC over management interface (CUJ LAN) with embedded web server, or device front panel with buttons and LEDs, up to 4 predefined configurations |
| Ethernet | support for up to 8K MAC address entries with automatic learning and aging; full duplex, half duplex, flow control; egress tagging/untagging per port or by 802.1Q VLAN ID; QoS with four traffic classes |
| Power supply | nominal 24 or 48 VDC |
| Dissipation (PoE not included) | up to 55 W |
| Consumption CUJ | up to 25 W |
| Consumption UK | up to 8 W |
| Consumption PJ | up to 3 W |
| Weight CUJ | 9000 g |
| Weight UK | 3000 g |
| Weight PJ | 1000 g |
| Operating temperature range (ETSI 3.3) | -15 °C to +55 °C |
| Ingress protection rating | IP67 |
| Resistance | vibration and shock resistant |
All data provided for information purposes; final specification is defined per contract.
