BIG BLOCK
BIG BLOCK ballistic shield
Large ballistic shield for special units, protecting the user against rifle ammunition up to 7.9 mm calibre, with a handle on the inner side, available with or without a ballistic glass visor, and able to be disassembled so that the upper plate can be used independently as a Hand block.

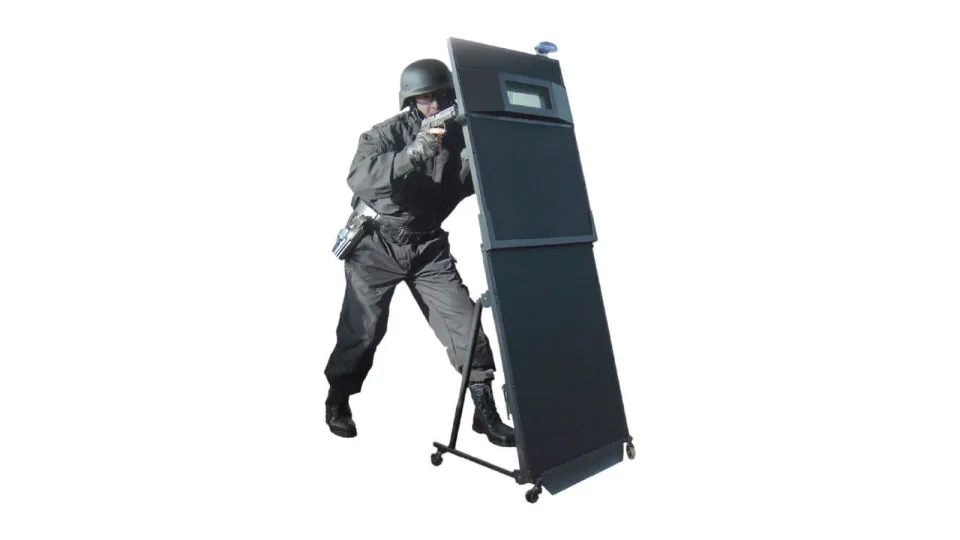

Show BIG BLOCK ballistic shield, view 1 of 2Show BIG BLOCK ballistic shield, Operational view
Enlarge BIG BLOCK ballistic shieldEnlarge BIG BLOCK ballistic shield, Operational view
Specification
| Shield protection level | NIJ STD 0101.04, III |
|---|---|
| Visor protection level | NIJ STD 0101.04, III |
| Visor opening | 200 x 100 mm |
| Ballistic part mass (maximum) | 19 kg/m² |
| Dimensions | 1600 x 850 mm |
| Colour | black |
| Threat | rifle ammunition, regular grain, conclusive with calibre 7.9 mm |
| Variants | with or without ballistic glass visor |
| Feature | can be disassembled, upper plate usable independently as Hand block |
All data provided for information purposes; final specification is defined per contract.
