M80
44 mm hand-held antitank rocket launcher
Light shoulder-fired antitank rocket launcher with optical sighting system, firing the same shells as the hand launcher M57.
Also written: 44

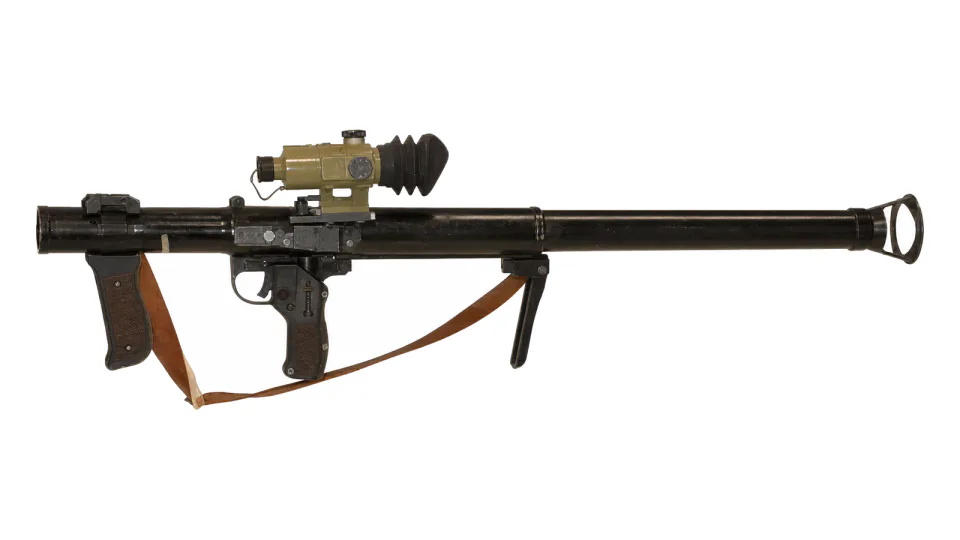

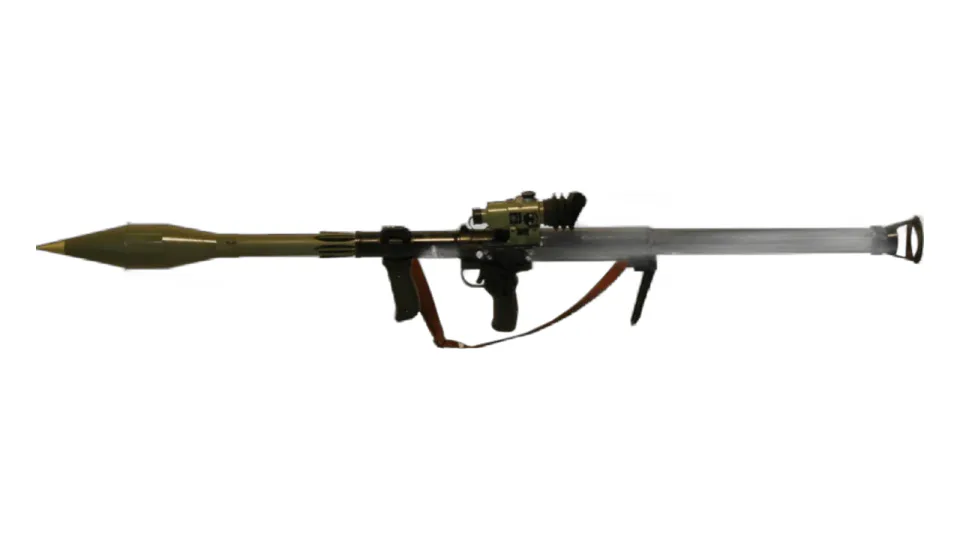

Show 44 mm hand-held antitank rocket launcher, view 1 of 2Show 44 mm hand-held antitank rocket launcher, loaded with rocket
Enlarge 44 mm hand-held antitank rocket launcherEnlarge 44 mm hand-held antitank rocket launcher, loaded with rocket
Specification
| Calibre | 44 mm |
|---|---|
| Launcher mass | 6.6 kg |
| Optical system mass | 0.83 kg |
| Launcher length | 1.040 m |
| Ammunition | HEAT shell M80; same shells as the hand launcher M57 |
| Sighting device | ON-M80 optical sight with tritium illuminated reticle for night sighting and IR source detection |
All data provided for information purposes; final specification is defined per contract.
