YERINA 1
400 mm correctable artillery rocket YERINA 1
Correctable 400 mm artillery rocket designed to destroy enemy area targets and large point targets such as military bases, airports, ports and port facilities, transport nodes and factories at distances of up to 285 km.
Also written: 400

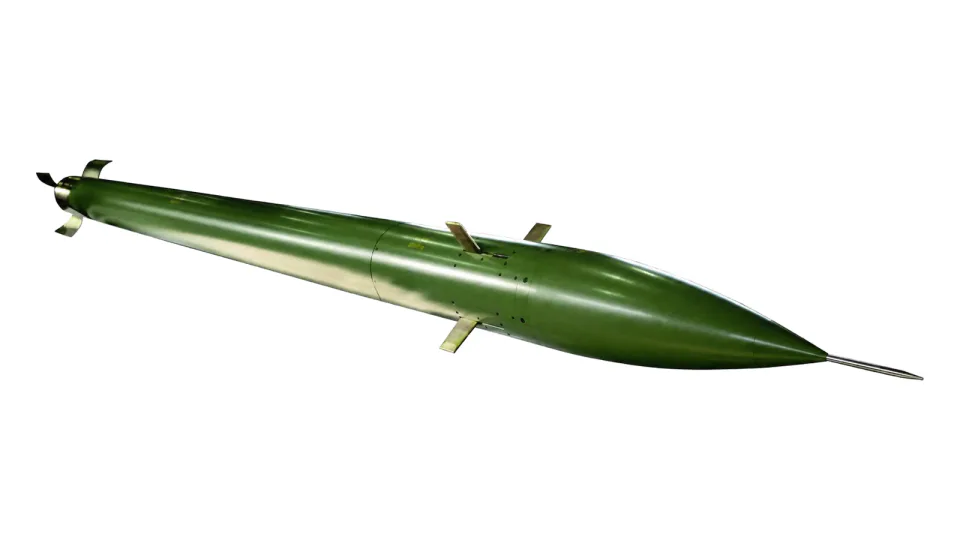

Enlarge 400 mm correctable artillery rocket YERINA 1
Specification
| Maximum range (at sea level) | Up to 285 km |
|---|---|
| Minimum range (at sea level) | More than 70 km |
| Operating temperature range | -30°C/+50°C |
| CEP | < 50 m |
| Type of warhead | HE/fragmentation |
| Warhead weight | 200 kg |
| Type of propellant | Solid composite |
| Overall missile length | 8250 mm |
| Missile caliber | 400 mm |
| Span of foldable fins with grooves | 854 mm |
| Span of control surfaces (canards) | 720 mm |
| Length of container-type launcher | 8600 mm |
| Missile weight at launch | ~ 1500 kg |
| Rocket motor propellant weight | ~ 890 kg |
All data provided for information purposes; final specification is defined per contract.
