GH-20
20 mm helicopter gun pod GH-20
A helicopter gun pod carrying a 20 mm gun with 200 rounds in the belt, mounted on helicopter side supports for close fire support in anti-terrorist and anti-riot missions as well as territory surveillance and border protection, effective against lightly armoured and unarmoured vehicles and troops in buildings and field fortifications.
Also written: 20x110

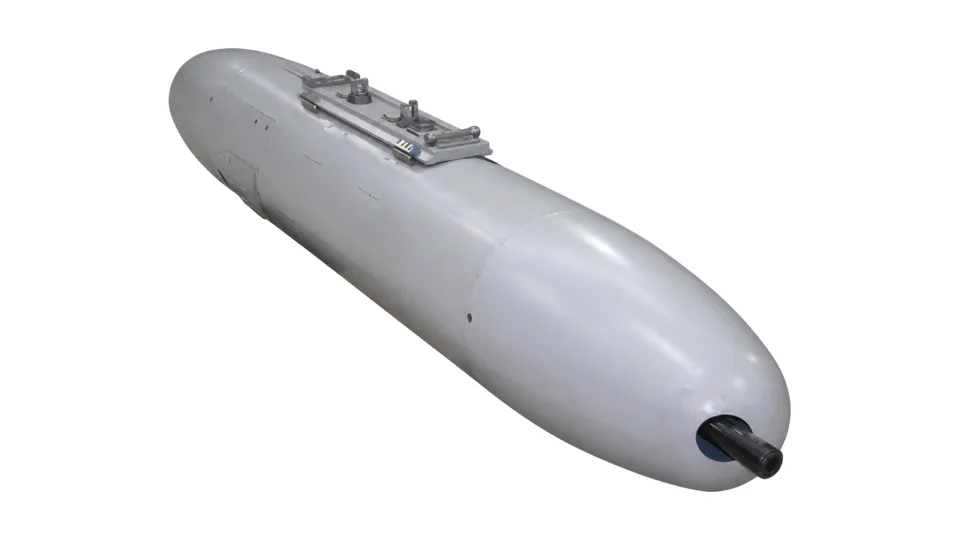

Enlarge 20 mm helicopter gun pod GH-20
Specification
| Weight | 130 kg |
|---|---|
| Length | 2600 mm |
| Diameter | 400 mm |
| Ammunition | cal. 20 x 110 mm |
| Muzzle velocity | 850 m/s |
| Effective range | 2000 m |
| Rate of fire | 650-730 rds/min |
| Magazine capacity | 200 rds in the belt |
| Gun weight | 49 kg |
| Voltage | 28 V ± 4 |
All data provided for information purposes; final specification is defined per contract.
