KERBER
20 mm remote controlled weapon station KERBER
A vehicle-mounted remote weapon station built around a triple-barrel 20 mm gun with drum feeding, operated from an in-vehicle console with joystick and ballistic computer, and served by a sensor unit with day channel, thermal imaging camera and laser range finder.
Also written: 20, 20 mm (20x110 mm)

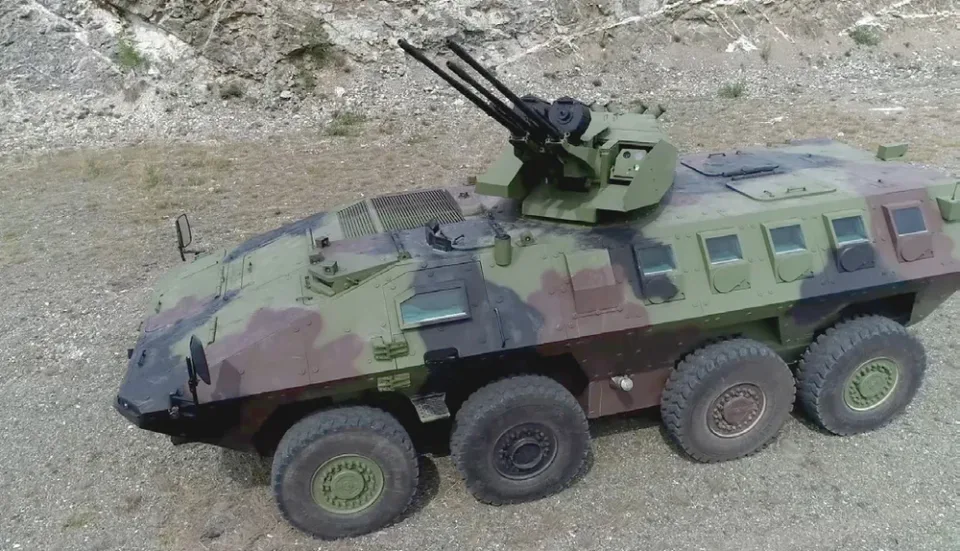

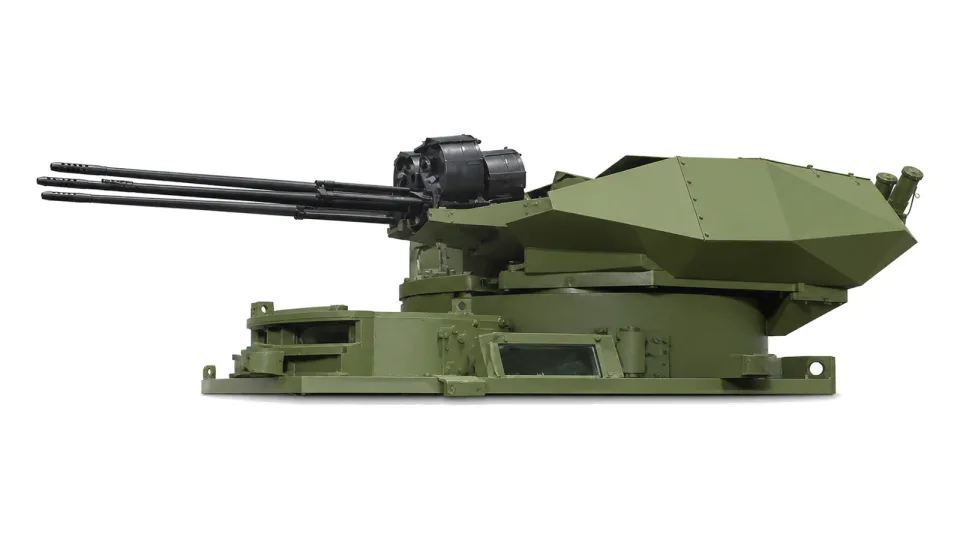

Show 20 mm remote controlled weapon station KERBER, view 1 of 2Show 20 mm remote controlled weapon station KERBER, on 6x6 carrier
Enlarge 20 mm remote controlled weapon station KERBEREnlarge 20 mm remote controlled weapon station KERBER, on 6x6 carrier
Specification
| Width x height x length | 1650 x 800 x 4500 mm |
|---|---|
| Weight of the weapon station (with loaded drums) | ~ 1400 kg |
| Start-up mode | electric |
| Field of fire in azimuth | n x 360° |
| Field of fire in elevation | -5° to +70° |
| Gun type | HISPANO M55 |
| Calibre | 20 mm (20 x 110 mm) |
| Feeding method | drum |
| Number of rounds per drum | 60 |
| Combat set | 3 drums on the gun, 3 in the turret, spare drums in the vehicle |
| Muzzle velocity | 850 m/s |
| Rate of fire | 1950-2250 rounds/min |
| Firing options | single and burst fire, from the middle barrel, two lateral barrels or all three barrels |
| Day channel sensor type | 1/2,8" CMOS |
| Day channel magnification | 36x |
| Day channel angle of site | 63,7° (wide) to 2,3° (tele) |
| Night channel sensor type | 640 x 512 VOx microbolometer |
| Night channel spectrum range | 7,5 - 13,5 µm |
| Night channel field of view (H x V) | 6,2° to 5° |
| Laser range finder wave length | 1540 nm |
| Laser range finder measuring range | 80 - 10000 m |
| Laser range finder measurement error | ± 5 m |
| Smoke pot launchers | 4, operated from the control panel |
All data provided for information purposes; final specification is defined per contract.
