M19
155 mm HE ER-BT round M19 with MC zone 10 charge

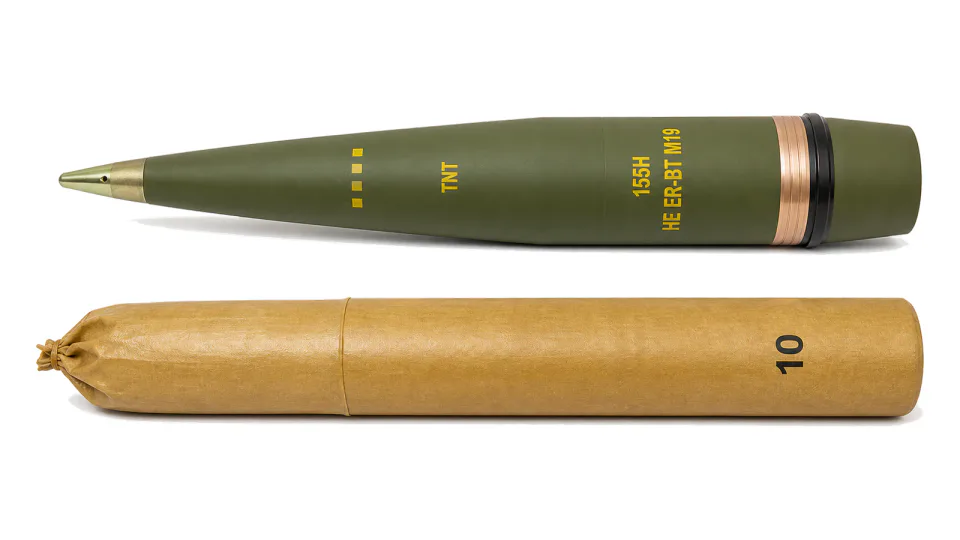

Separate-loaded 155 mm extended-range boat-tail HE round with MC zone 10 charge, maximum range 29000 m.
Autres désignations : 155
Afficher 155 mm HE ER-BT round M19 with MC zone 10 charge, vue 1 sur 2Afficher 155 mm HE ER-BT round M19 with MC zone 10 charge, with propellant charge
Agrandir 155 mm HE ER-BT round M19 with MC zone 10 chargeAgrandir 155 mm HE ER-BT round M19 with MC zone 10 charge, with propellant charge
Spécifications
| Projectile weight | 43.8 kg (tabular) |
|---|---|
| Explosive charge | 9.7 kg TNT |
| Propellant charge weight | 17 kg |
| Projectile length with fuze | 937.28 mm |
| Propelling charge | MC zone 10 |
| Muzzle velocity | 930 m/s |
| Maximum range | 29000 m |
| Mean maximum pressure of powder gases | <= 3300 bar |
| Fuze | UTIU M02P1, superquick or delay action |
| Primer | KT M82P2 |
| Operating temperature | -30 to +50 deg C |
| Weapon compatibility | 155 mm self-propelled gun-howitzer NORA-B52 M15 |
Toutes les données sont fournies à titre indicatif ; les spécifications définitives sont fixées par contrat. Les fiches techniques complètes sont communiquées sur demande, sur indication de l’utilisateur final.
