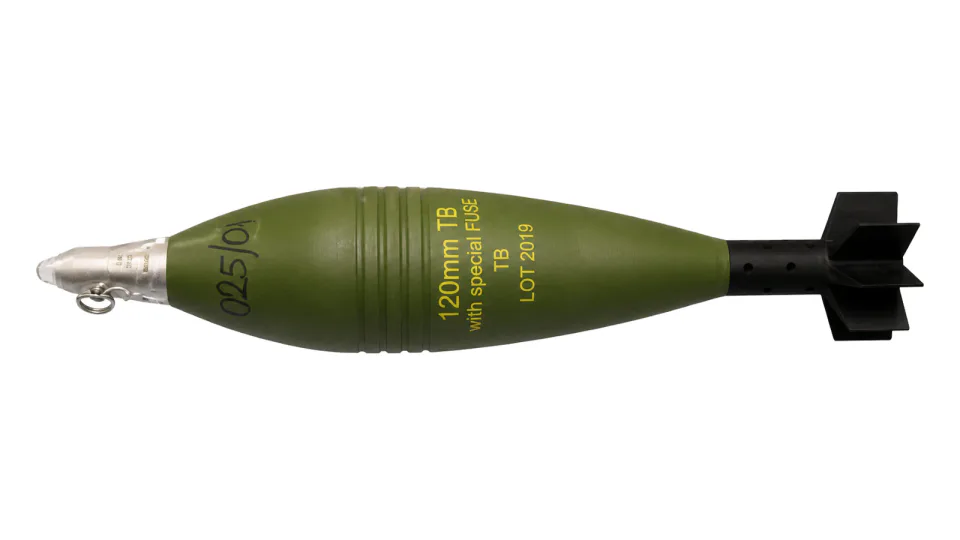

120 mm TB thermobaric air-drop shell
120 mm air-dropped shell for UAV release, filled with 2525 g insensitive PBX thermobaric explosive and plastic fins.
Autres désignations : 120
Afficher 120 mm TB thermobaric air-drop shell, vue 1 sur 2Afficher 120 mm TB thermobaric air-drop shell, in packing crate
Agrandir 120 mm TB thermobaric air-drop shellAgrandir 120 mm TB thermobaric air-drop shell, in packing crate
Spécifications
| Length with fuze | 610 mm |
|---|---|
| Mass with fuze | 12650 g |
| Explosive charge | Thermobaric explosive (PBX) |
| Mass of explosive charge | 2525 g |
| Fuze | UT M18, special impact fuze |
| Lethal (kill) radius of fragments | 20 m |
| Overpressure at 5 m | 0.5 bar |
| Minimum discarding (release) height | 50 m |
| Explosive insensitivity (MIL-STD-2105B) | Open flame / high temperature reaction type V (burning); impact of 12.7 mm AP ammunition reaction type V (burning) |
| Operating temperature range | -30 deg C to +55 deg C |
| Storing temperature range | -30 deg C to +70 deg C |
| Service life | 15 years |

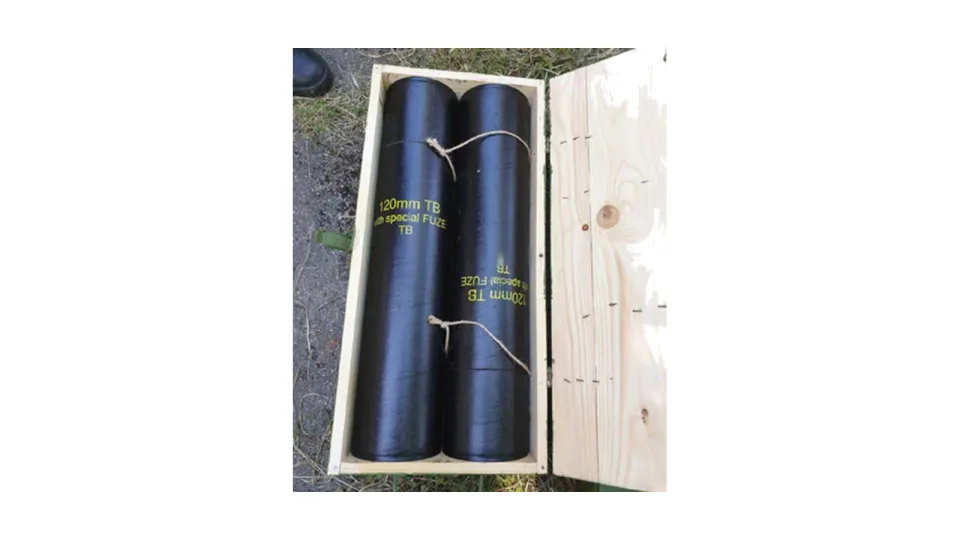

| Packaging | Two shells in cardboard tubes per wooden box 673 x 317 x 166 mm, 34 kg |
Toutes les données sont fournies à titre indicatif ; les spécifications définitives sont fixées par contrat. Les fiches techniques complètes sont communiquées sur demande, sur indication de l’utilisateur final.
