TF-462A1

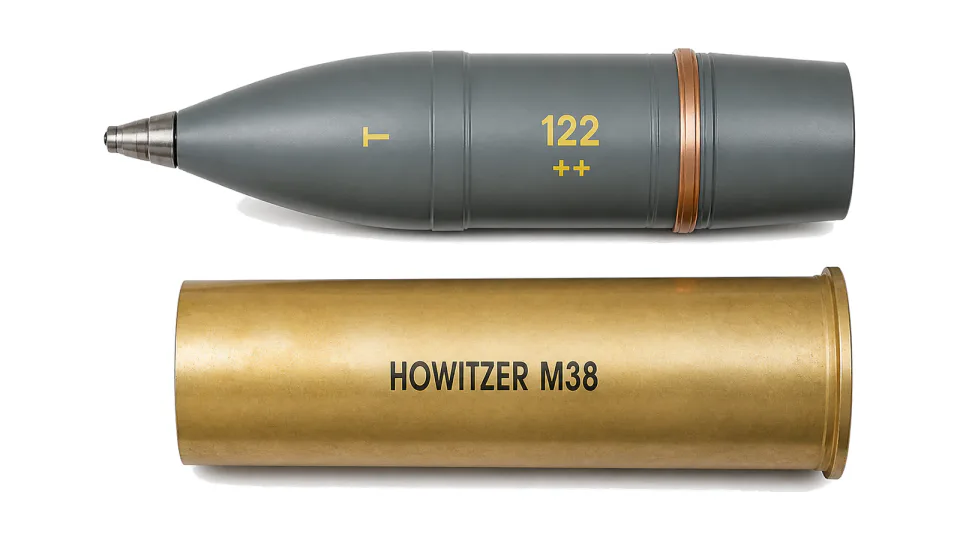

122 mm HE shell TF-462A1 for howitzer M38
Separate-loaded 122 mm high-explosive round in the short M38 cartridge case, maximum range 11800 m.
يُكتب أيضاً: 122
عرض 122 mm HE shell TF-462A1 for howitzer M38، المنظر 1 من 2عرض 122 mm HE shell TF-462A1 for howitzer M38، sectioned
تكبير 122 mm HE shell TF-462A1 for howitzer M38تكبير 122 mm HE shell TF-462A1 for howitzer M38، sectioned
المواصفات
| Projectile weight | 21.88 kg |
|---|---|
| Explosive charge | 3.60 kg TNT |
| Propelling charge weight | 2.20 kg |
| Cartridge case weight | 2.94 kg |
| Projectile length | 561 mm |
| Cartridge case length | 284 mm |
| Muzzle velocity | 515 m/s |
| Maximum range | 11800 m |
| Fuze | UT-PE M87, impact, superquick and delay action |
| Weapon compatibility | 122 mm howitzer M38 |
| Packaging | 2 rounds in a wooden case, case 98 x 50 x 23 cm, gross mass 24.512 kg, volume 0.1118 m3 |
جميع البيانات مقدمة لأغراض المعلومات؛ وتُحدَّد المواصفات النهائية بموجب العقد. تصدر أوراق البيانات الفنية الكاملة عند الطلب مقابل مستخدم نهائي محدد.
