M02 COYOTE

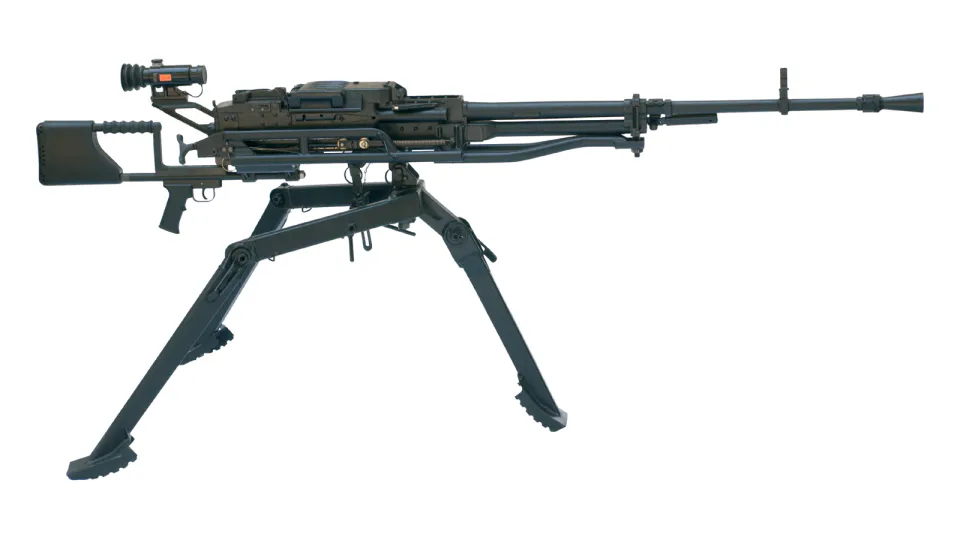

M02 Coyote Machine Gun
Tripod-mounted 12.7x108 mm machine gun with pistol trigger mechanism and buffered stock for anti-aircraft and long-range ground fire.
Pia huandikwa: 12,7x108, 12.7 Russian, 12.7 mm DShK, 12.7 x 108, 12.7X108, 12.7x108, 127x108, DShK
Panua M02 Coyote Machine Gun
Vipimo
| Calibre | 12.7x108 mm |
|---|---|
| Belt capacity | 60 rounds |
| Total length | 1970 mm |
| Barrel length | 1100 mm |
| Weight of weapon | 48.8 kg |
| Weight of mount | 24 kg |
| Weight of barrel | 9.3 kg |
| Type of fire | Automatic |
| Operation | Gas |
| Rate of fire | 700 rds/min |
| Maximum effective range | 1500 m |
| Field of action - horizontal | 25 deg |
| Field of action - vertical | -25 deg to +45 deg |
| Feeding | From belt in ammunition box, NSV-type links, fed from the right side |
Data zote zimetolewa kwa madhumuni ya taarifa; vipimo vya mwisho huainishwa katika mkataba. Karatasi kamili za data za kiufundi hutolewa kwa ombi linalotaja mtumiaji wa mwisho.
